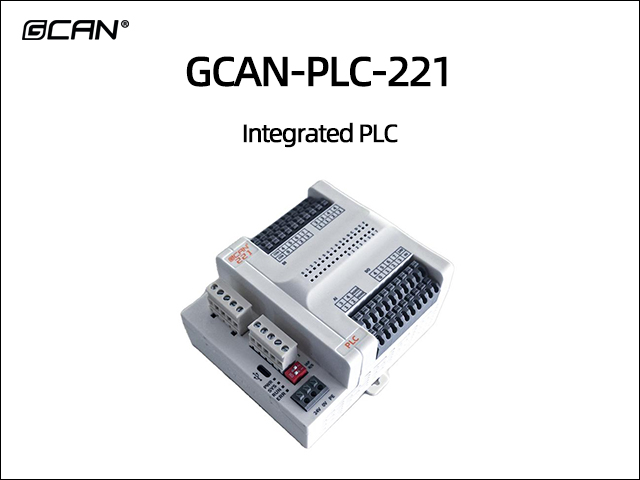

GCAN-PLC-221 Integrated PLC
- Brand:
- GCAN
- Model:
- GCAN-PLC-221
- Application:
- Industrial automation control core, analog closed-loop control system, switch open-loop control, logic operation, industrial CAN bus, ModBUS bus network communication
-
1.Function Overview
GCAN-PLC-221 is a programmable logic controller (PLC) with integrated bus control function. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems.
The GCAN-PLC-221 product combines a microprocessor, integrated power supply, input circuit, and output circuit into a compact housing, forming a powerful PLC. After downloading the user program, the PLC will contain the logic required for the input and output devices in the monitoring application.
GCAN-PLC-221 can be programmed using OpenPCS software or CodeSys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.
GCAN-PLC-221 not only can complete digital/analog input/output, support PT100 temperature acquisition, but also integrates various commonly used industrial fieldbus, such as CAN bus, RS232/485 bus, and supports common communication protocols such as CANopen, Modbus RTU, etc.
2.Performance Characteristics
Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● Two CAN channels; 1 RS232 channel; 1 RS485 channel;
● Support CANopen master/slave station function;
● Supports Modbus RTU master/slave functionality;
● 8 channels of DO (multiplexed with 3 channels of PWM pulse output); 8-channel DI (multiplexing 4-channel counting input);
● 4-channel AI (customizable for current or voltage type);
● 4-channel PT100 temperature acquisition;
● The power supply adopts 24V DC (-15%/+20%);
● Communication isolation is 1500V DC (excluding RS232);
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN channel;
● Size: (length) 115mm * (width) 100mm * (height) 58mm.

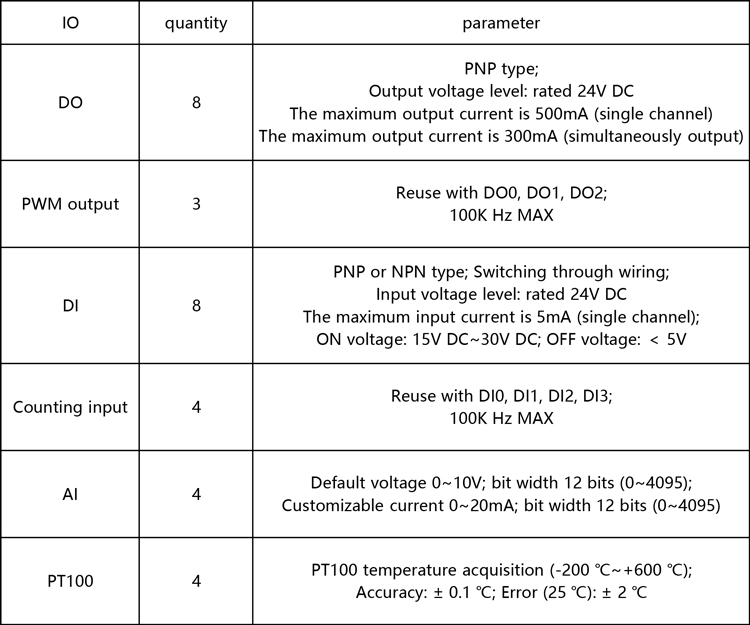

IO detailed parameters:
3.Typical Applications
● Industrial automation control core
● Analog closed-loop control system
● Switching open-loop control, logical operation
● Industrial CAN bus, ModBUS bus network communication
-
