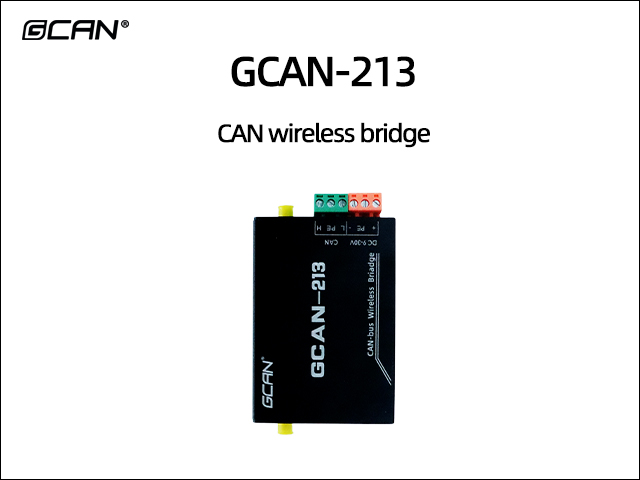

GCAN-213 CAN wireless bridge
- Brand:
- GCAN
- Model:
- GCAN-213
- Application:
- ● CAN-bus network diagnosis and testing ● Smart city, industrial Internet of Things ● Wireless remote control, drone ● CAN-bus debugging of mobile vehicles
-
1. Equipment introduction
Guangcheng Technology's GCAN-213 is a CAN bus wireless bridge that facilitates wireless transmission of information between two CAN systems. By utilizing the GCAN-213 CAN bus wireless bridge, users can effortlessly establish interconnectivity between two CAN-bus networks, thereby expanding the reach of the CAN-bus network.
The Guangcheng Technology GCAN-213 consists of a pair of radio transceivers operating in the 2.4GHz ISM band. It provides the maximum allowable transmission power to ensure reliable connections and maximizes communication distance. The omnidirectional antenna supports transmission and reception in any direction.
Since the 2.4 GHz ISM band can be used by many different radio technologies, it is subject to various regulations aimed at establishing coexistence in areas where transmitting and receiving ends using the same frequency band are densely distributed, which may result in a decline in wireless signal communication quality.
2. Equipment parameters
● 2.4GHz dedicated protocol, built-in antenna, with a maximum antenna output power of 27dBm;
● USB interface: USB2.0 full-speed interface, compatible with USB1.1 and USB3.0;
● CAN interface: Adheres to the ISO 11898 standard and supports CAN2.0A/B;
● CAN baud rate: 5Kbit/s~1Mbit/s;
● Electrical isolation: 3000V, DC-DC;
● Power supply voltage: 9 to 30V DC (±5%);
● Power supply current: 200mA (24V DC);
● Operating temperature: -40℃~+85℃;
● Operating humidity: 15% to 90%RH, no condensation;
● EMC testing: EN 55024:2011-09, EN 55022:2011-12;
● Protection level: IP 20;
● Size: 114*64*24mm.
3. Application areas
● CAN-bus network diagnosis and testing
● Smart city, industrial Internet of Things
● Wireless remote control, drone
● CAN-bus debugging of mobile vehicles
Welcome to inquire and learn more.
-
- ● 2.4GHz dedicated protocol, built-in antenna, with a maximum antenna output power of 27dBm;
● USB interface: USB2.0 full-speed interface, compatible with USB1.1 and USB3.0;
● CAN interface: Adheres to the ISO 11898 standard and supports CAN2.0A/B;
● CAN baud rate: 5Kbit/s~1Mbit/s;
● Electrical isolation: 3000V, DC-DC;
● Power supply voltage: 9 to 30V DC (±5%);
● Power supply current: 200mA (24V DC);
● Operating temperature: -40℃~+85℃;
● Operating humidity: 15% to 90%RH, no condensation;
● EMC testing: EN 55024:2011-09, EN 55022:2011-12;
● Protection level: IP 20;
● Size: 114*64*24mm.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
