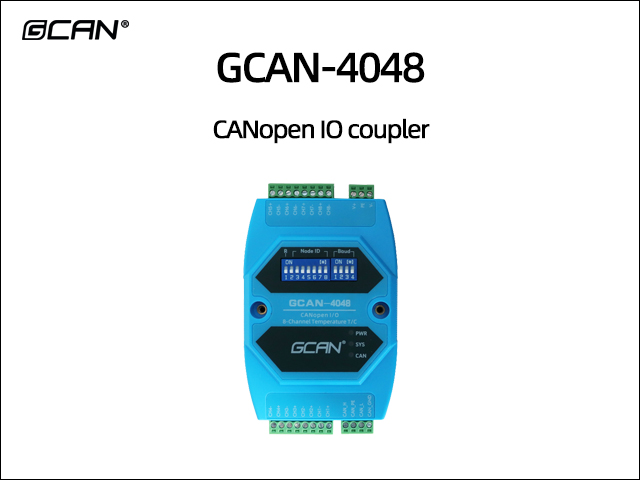

GCAN-4048 CANopen IO coupler
- Brand:
- GCAN
- Model:
- GCAN-4048
- Application:
- ● Industrial field network data monitoring; ● Remote communication for coal mines and oil wells; ● CAN teaching application remote communication; ● CAN industrial automation control system; ● CAN-bus application systems such as intelligent building control data broadcasting systems.
-
1. Equipment Introduction
The GCAN-4048 module from Shenyang Guangcheng Technology is an industrial-grade CANopen analog quantity acquisition module that integrates one standard CANopen interface and eight thermocouple inputs. By utilizing the GCAN-4048 module, users can simultaneously acquire eight signals, facilitating the connection between remote analog quantity acquisition devices and the CANopen network, thereby forming a control node for analog signal acquisition within the CANopen network. Currently, the GCAN-4048 module supports J-type, K-type, T-type, and S-type thermocouples, and the thermocouple models, multipliers, and offsets for the eight channels can be freely configured.
The GCAN-4048 module is a crucial tool for analog signal acquisition. Upon power-on, it automatically receives data. Additionally, this module boasts compact size and convenient wiring. The bus interface of the GCAN-4048 module integrates an isolation protection module, safeguarding it from damage caused by transient overvoltage and overcurrent. Its DIN rail mounting method facilitates integration into various control cabinets.
2. Equipment Parameters
● CAN-bus supports the CAN2.0A frame format, which complies with the ISO/DIS 11898 specification;
● The CAN-bus interface employs electrical isolation, with an isolation module insulation voltage of DC 1500V;
● Use 8~32V DC power supply (recommended standard voltage 24V);
● Number of thermocouple input channels: 8 channels;
● The error is ≤0.1% of the full scale;
● Type J thermocouple: -200 to 1190℃, refer to Table N.I.S.T. Monograph 175, ITS-90 International Temperature Scale;
● Type K thermocouple: -260~1360℃, refer to Table N.I.S.T Monograph 175, ITS-90 International Temperature Scale;
● Type T thermocouple: -240 to 390℃, refer to Table N.I.S.T Monograph 175, ITS-90 International Temperature Scale;
● S-type thermocouple: -40 to 1490℃, refer to Table N.I.S.T Monograph 175, ITS-90 International Temperature Scale;
● Supplementary development for other thermocouple models;
● The thermocouple temperature acquisition interface and CANopen interface utilize terminal interfaces;
● Configure the module baud rate and node number using the dip switch;
● The available accessory card rail connectors can be installed onto the DIN card rail;
● Operating temperature: -40~85℃;
● Operating humidity: ≤95%RH, no condensation;
3. Application Fields
● Industrial field network data monitoring;
● Remote communication for coal mines and oil wells;
● CAN teaching application remote communication;
● CAN industrial automation control system;
● CAN-bus application systems such as intelligent building control data broadcasting systems.
Welcome to inquire and learn more.
-
- ● CAN-bus supports the CAN2.0A frame format, which complies with the ISO/DIS 11898 specification;
● The CAN-bus interface employs electrical isolation, with an isolation module insulation voltage of DC 1500V;
● Use 8~32V DC power supply (recommended standard voltage 24V);
● Number of thermocouple input channels: 8 channels;
● The error is ≤0.1% of the full scale;
● Type J thermocouple: -200 to 1190℃, refer to Table N.I.S.T. Monograph 175, ITS-90 International Temperature Scale;
● Type K thermocouple: -260~1360℃, refer to Table N.I.S.T Monograph 175, ITS-90 International Temperature Scale;
● Type T thermocouple: -240 to 390℃, refer to Table N.I.S.T Monograph 175, ITS-90 International Temperature Scale;
● S-type thermocouple: -40 to 1490℃, refer to Table N.I.S.T Monograph 175, ITS-90 International Temperature Scale;
● Supplementary development for other thermocouple models;
● The thermocouple temperature acquisition interface and CANopen interface utilize terminal interfaces;
● Configure the module baud rate and node number using the dip switch;
● The available accessory card rail connectors can be installed onto the DIN card rail;
● Operating temperature: -40~85℃;
● Operating humidity: ≤95%RH, no condensation;
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
