GCAN-203 Bluetooth to CAN converter
- Brand:
- GCAN
- Model:
- GCAN-203
- Application:
- 1. Long-distance monitoring of CAN bus communication status of transmission lines in the power industry 2. Car real-time data mobile app monitoring 3. Intelligent control of medical device mobile terminal APP 4. Bluetooth remote monitoring of generator sets in the wind power industry
-
1. Equipment Introduction
GCAN-203 (CANBlue) is an industrial grade CAN bus communication converter that integrates one standard CAN bus interface and uses Bluetooth to send CAN bus data to terminals. Using the GCAN-203 module, users can access CAN nodes and read CAN bus data using a handheld mobile terminal (phone/PAD). For some CAN networks that are difficult to physically connect, using the GCAN-203 module to wirelessly connect with the CAN network for data exchange will become extremely convenient. This module has been widely used to build CAN bus network control nodes for data processing and data acquisition in the fields of fieldbus laboratories, industrial control, intelligent communities, automotive electronic networks, and other CAN bus network fields.
The GCAN-203 intelligent protocol converter is a key tool for industrial bus transformation and wireless acquisition of CAN data. At the same time, this module has the characteristics of small size, plug and play, and users can use standard DIN rails to fix and install the module, making it easy to integrate into existing systems.
The GCAN-203 intelligent protocol converter is suitable for low-speed data transmission applications on the CAN bus, with a maximum transmission rate of 300 frames per second. Similarly, the GCAN-203 intelligent protocol converter is not only suitable for basic CAN bus products, but also for the development of CAN bus products based on high-level protocols such as DeviceNet and CANopen.

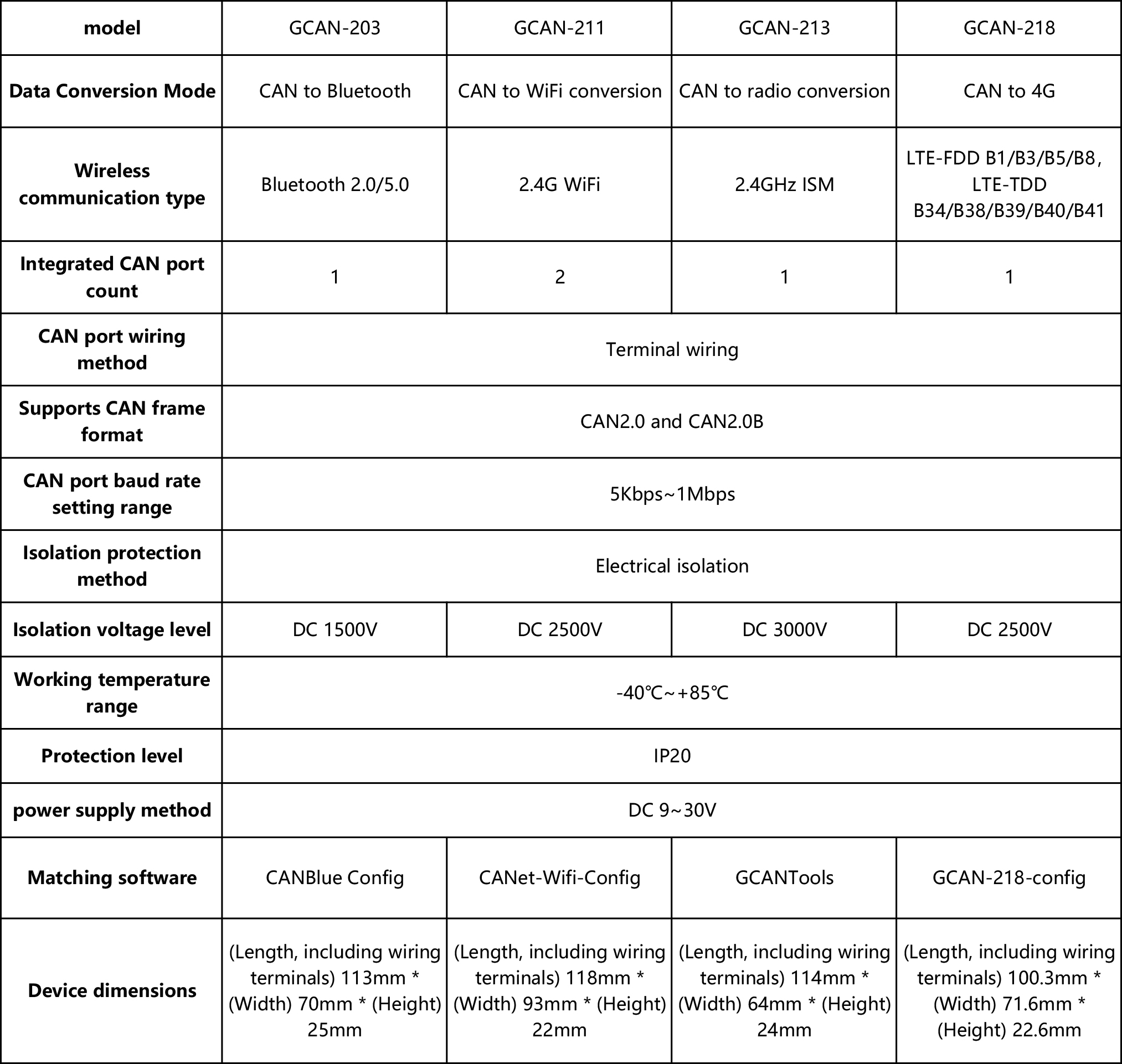

2. Equipment parameters
● The CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
● The baud rate of CAN bus communication can be programmed between 5kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V;
● Maximum data traffic: 300 frames per second;
● Bluetooth 2.0 is used;
● Use 9-30V DC power supply;
● Power supply current: 30mA 24V DC;
● Use CANBlue Config to configure working modes and parameters;
● Provide filtering function for sending data from CAN end to Bluetooth end;
● Can be equipped with matching card rail connectors and installed on DIN card rails;
● Working temperature range: -40 ℃~+85 ℃;
3. Application Fields
● CAN system access that is difficult to physically connect;
● Industrial site network data monitoring;
● CAN teaching application remote communication;
● CAN industrial automation control system;
● Low speed CAN network data collection and analysis;
● Intelligent building control data broadcasting system and other CAN bus application systems.
Welcome to inquire and learn more
-
- ● The CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
● The baud rate of CAN bus communication can be programmed between 5kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V;
● Maximum data traffic: 300 frames per second;
● Bluetooth 2.0 is used;
● Use 9-30V DC power supply;
● Power supply current: 30mA 24V DC;
● Use CANBlue Config to configure working modes and parameters;
● Provide filtering function for sending data from CAN end to Bluetooth end;
● Can be equipped with matching card rail connectors and installed on DIN card rails;
● Working temperature range: -40 ℃~+85 ℃;
