GCAN-218 CAN to 4G converter
- Brand:
- GCAN
- Model:
- GCAN-218
- Application:
- ● Fieldbus Laboratory ● Industrial control ● Smart community ● Automotive electronic network
-
1. Equipment introduction
Guangcheng Technology's GCAN-218 is a high-performance CAN-bus communication interface card that integrates one CAN interface and one 4G interface. By utilizing the GCAN-218 high-performance CAN interface card, users can effortlessly achieve interconnectivity between CAN-bus networks and 4G networks, thereby further expanding the scope of CAN-bus networks.
The Guangcheng Technology GCAN-218 high-performance CAN interface card serves as a powerful tool for CAN-bus product development and CAN-bus data analysis. The cloud server can quickly connect to the CAN-bus network via a 4G interface, forming a CAN-bus network control node for data processing and data acquisition in CAN-bus network fields such as fieldbus laboratories, industrial control, smart communities, and automotive electronic networks. Additionally, this device boasts compact size and plug-and-play functionality, making it the ideal choice for users of portable systems.
The GCAN-218 from Guangcheng Technology has integrated a CAN interface electrical isolation protection module, which prevents damage to the device due to instantaneous overcurrent/overvoltage and enhances the reliability of the system for use in harsh environments.

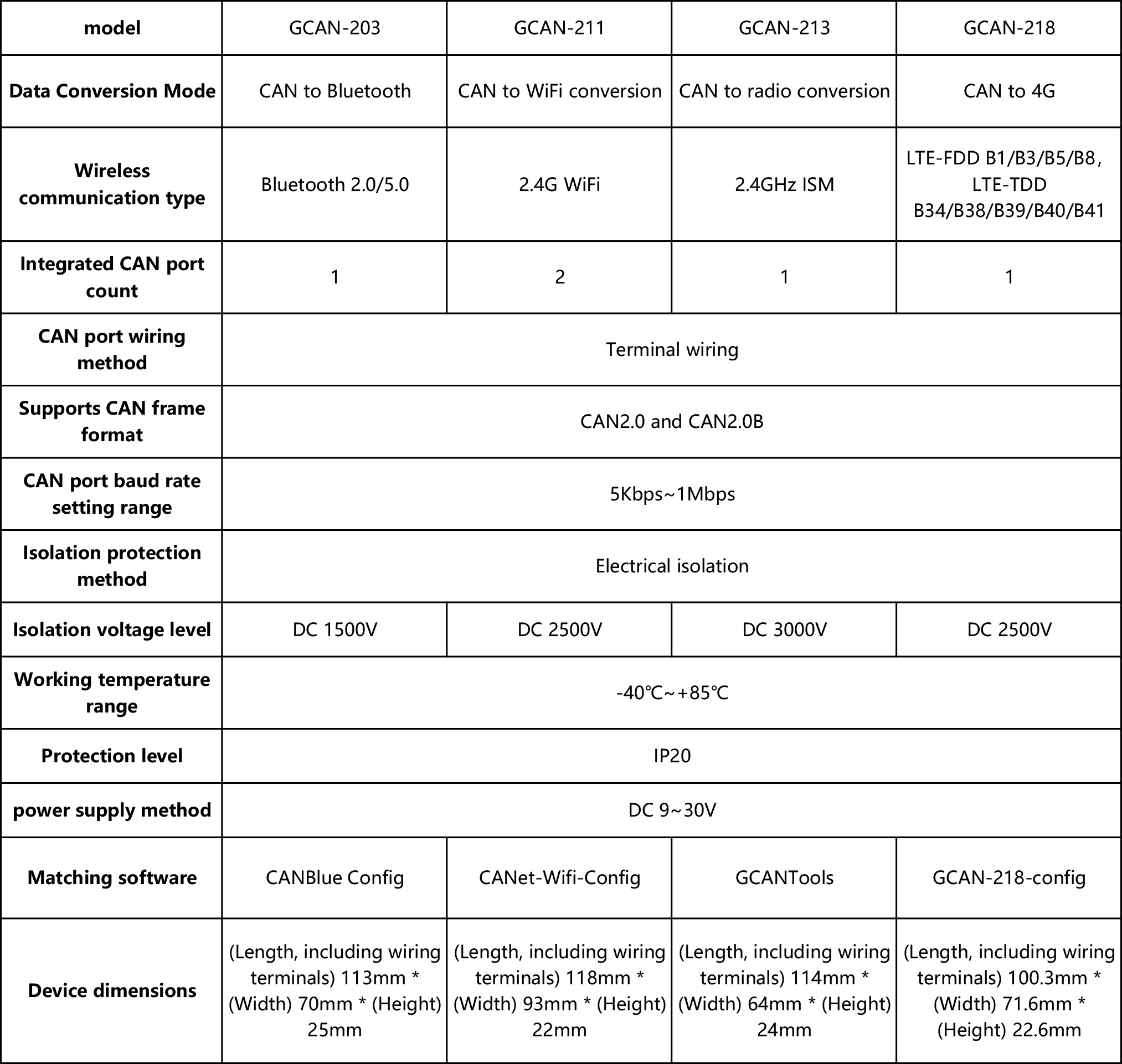

2. Equipment parameters
● Power supply range and mode: (DC9~30V, typical value 24V);
● Electrostatic discharge immunity level: contact discharge ±2KV, air discharge ±15KV;
● Electrical fast transient/burst immunity level: ±1KV;
● Surge immunity level: ±1KV;
● Operating humidity range: 5% to 95% RH, no condensation;
● Electrical isolation level: 2500 Vrms;
● Operating temperature range: -40℃~+85℃;
● Protection level: IP20;
● Size: 96.5*65MM
● Applicable to standard frequency bands LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41
● Interface type: 1 CAN bus interface, 1 Ethernet interface, 1 4G, 1 GPS (this function is not included by default), 1 USB debugging interface. Power supply and CAN are OPEN wiring terminals. The Ethernet interface is an RJ45 network port. The antennas for 4G and GPS are coaxial connectors.
3. Application areas
● Fieldbus Laboratory
● Industrial control
● Smart community
● Automotive electronic network
Welcome to inquire and learn more.
-
- ● Power supply range and mode: (DC9~30V, typical value 24V);
● Electrostatic discharge immunity level: contact discharge ±2KV, air discharge ±15KV;
● Electrical fast transient/burst immunity level: ±1KV;
● Surge immunity level: ±1KV;
● Operating humidity range: 5% to 95% RH, no condensation;
● Electrical isolation level: 2500 Vrms;
● Operating temperature range: -40℃~+85℃;
● Protection level: IP20;
● Size: 96.5*65MM
● Applicable to standard frequency bands LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41
● Interface type: 1 CAN bus interface, 1 Ethernet interface, 1 4G, 1 GPS (this function is not included by default), 1 USB debugging interface. Power supply and CAN are OPEN wiring terminals. The Ethernet interface is an RJ45 network port. The antennas for 4G and GPS are coaxial connectors.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
