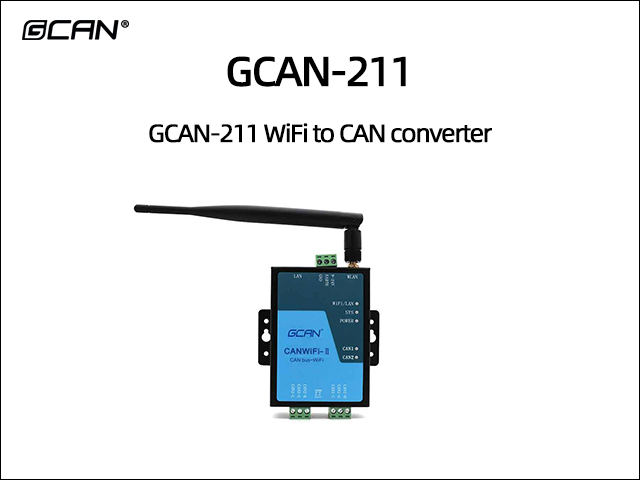

GCAN-211 WiFi to CAN converter
- Brand:
- GCAN
- Model:
- GCAN-211
- Application:
- ● CAN bus network diagnosis and testing ● Industrial WiFi connected to CAN network ● Electric power communication network ● Industrial Control Equipment ● High speed and large data communication
-
1. Equipment Introduction
Guangcheng Technology GCAN-211 is a high-performance CAN bus communication interface card that integrates 2 CAN interfaces, 1 Ethernet interface, and 1 WiFi interface. By using the GCAN-211 high-performance CAN interface card from Guangcheng Technology, users can easily interconnect CAN bus networks and WiFi networks, further expanding the range of CAN bus networks.
Guangcheng Technology GCAN-211 high-performance CAN interface card is a powerful tool for CAN bus product development and CAN bus data analysis, PC、 Mobile phones and PADs can quickly connect to CAN bus networks through WiFi, forming CAN bus network control nodes for data processing and collection in CAN bus network fields such as fieldbus laboratories, industrial control, smart communities, and automotive electronic networks. At the same time, this device has the characteristics of small size, plug and play, and is also the best choice for portable system users.
The GCAN-211 interface card of Guangcheng Technology has integrated a CAN interface electrical isolation protection module, which prevents equipment damage caused by instantaneous overcurrent/overvoltage and enhances the reliability of the system in harsh environments.
Guangcheng Technology GCAN-211 high-performance CAN interface card supports secondary development. Our company provides users with connection routine code in VB and C # environments. Users can develop their own testing software or integrate their devices into existing software systems based on this routine.

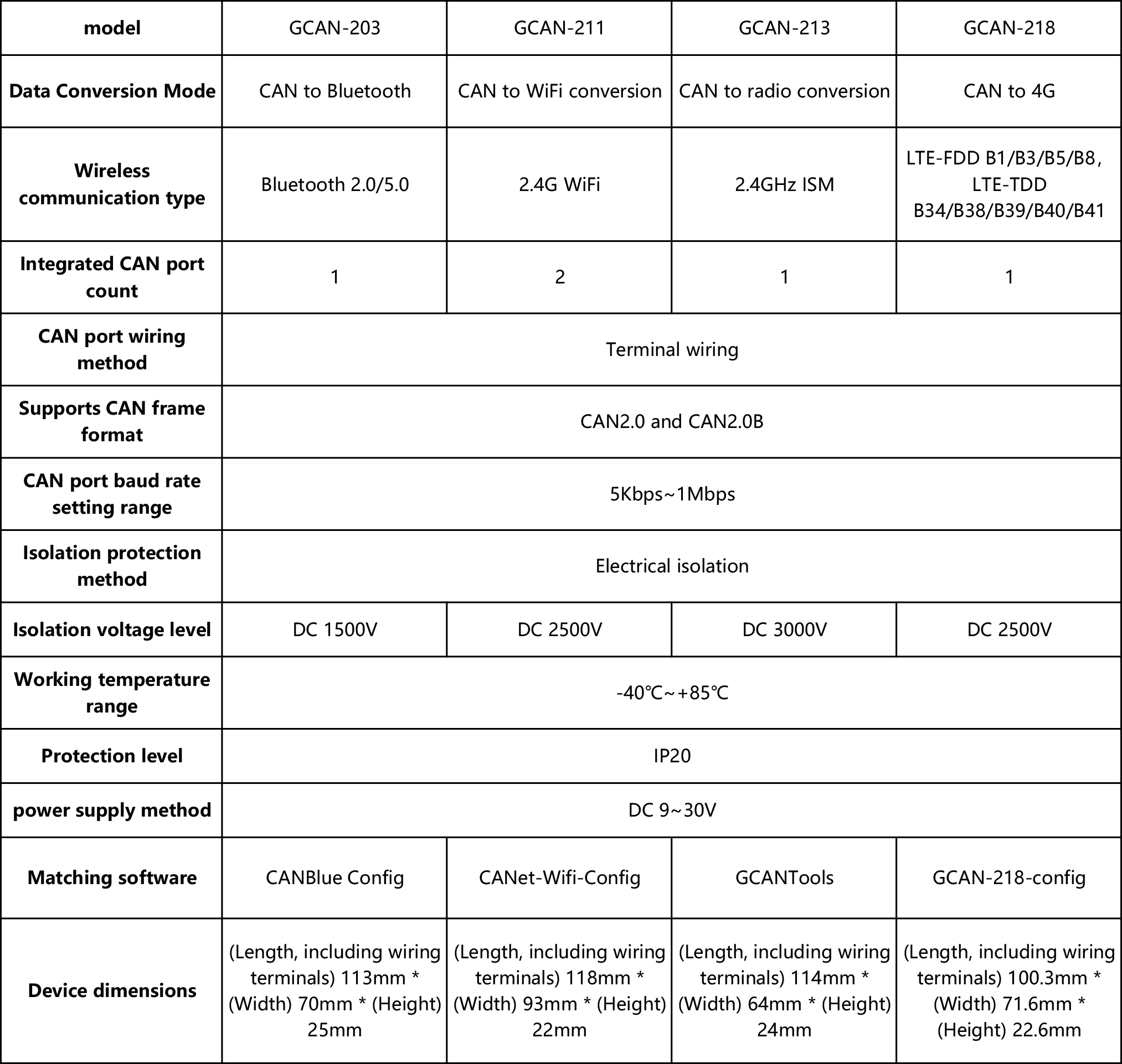

2. Equipment parameters
(1) Hardware features
● High speed 32-bit industrial grade processor;
● Embedded hardware watchdog timer;
● The module has a built-in FLASH memory that can store parameters;
● Use an external power supply (DC+9~24V), with a recommended power value of 12V or 24V;
● Power supply current: 80mA, 24V DC;
● Static discharge immunity level: Contact discharge ± 2KV, air discharge ± 15KV;
● Electrical fast transient burst immunity level: ± 1KV;
● Surge immunity level: ± 1KV;
● Working temperature range: -40 ℃~+85 ℃;
● Working humidity range: 5%~95% RH without condensation;
● The installation method of screw fixation is specifically designed for industrial use.
(2) CAN attribute
● Integrated with 2 CAN bus interfaces, using Phoenix terminal wiring method;
● The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
● CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS11898 standard;
● The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 2500V;
● 32 hardware FIFO receive buffers, maximum received data flow rate: 8000 frames per second;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us.
(3) Ethernet properties
● The PC interface uses a standard Ethernet interface, RJ45， Support 10/100M adaptive;
● Support timeout disconnection function;
● The working port, target IP, and target port can all be set;
● Automatically restore connection resources after network disconnection and reliably establish TCP connections;
● TCP supports up to 255 connections, allowing 6 groups of users to manage one CAN port simultaneously;
● Under UDP mode, each CAN port supports 6 sets of target IP segments, and multiple users can manage one CAN device simultaneously;
● Supports protocols including Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS, TCP;
● Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), and the communication software for the upper computer follows standard SOCKET rules.
(4) WiFi Properties
● Integrated 2.4G WLAN interface, compliant with IEEE802.11a/b/g standard;
● Supports AP and Station modes;
3.Application Fields
● CAN bus network diagnosis and testing
● Industrial WiFi connected to CAN network
● Electric power communication network
● Industrial Control Equipment
● High speed and large data communication
Welcome to inquire and learn more
-
- (1) Hardware features
● High speed 32-bit industrial grade processor;
● Embedded hardware watchdog timer;
● The module has a built-in FLASH memory that can store parameters;
● Use an external power supply (DC+9~24V), with a recommended power value of 12V or 24V;
● Power supply current: 80mA, 24V DC;
● Static discharge immunity level: Contact discharge ± 2KV, air discharge ± 15KV;
● Electrical fast transient burst immunity level: ± 1KV;
● Surge immunity level: ± 1KV;
● Working temperature range: -40 ℃~+85 ℃;
● Working humidity range: 5%~95% RH without condensation;
● The installation method of screw fixation is specifically designed for industrial use.
(2) CAN attribute
● Integrated with 2 CAN bus interfaces, using Phoenix terminal wiring method;
● The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
● CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS11898 standard;
● The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 2500V;
● 32 hardware FIFO receive buffers, maximum received data flow rate: 8000 frames per second;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us.
(3) Ethernet properties
● The PC interface uses a standard Ethernet interface, RJ45， Support 10/100M adaptive;
● Support timeout disconnection function;
● The working port, target IP, and target port can all be set;
● Automatically restore connection resources after network disconnection and reliably establish TCP connections;
● TCP supports up to 255 connections, allowing 6 groups of users to manage one CAN port simultaneously;
● Under UDP mode, each CAN port supports 6 sets of target IP segments, and multiple users can manage one CAN device simultaneously;
● Supports protocols including Ethernet, ARP, IP, ICMP, UDP, DHCP, DNS, TCP;
● Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), and the communication software for the upper computer follows standard SOCKET rules.
(4) WiFi Properties
● Integrated 2.4G WLAN interface, compliant with IEEE802.11a/b/g standard;
● Supports AP and Station modes;
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
