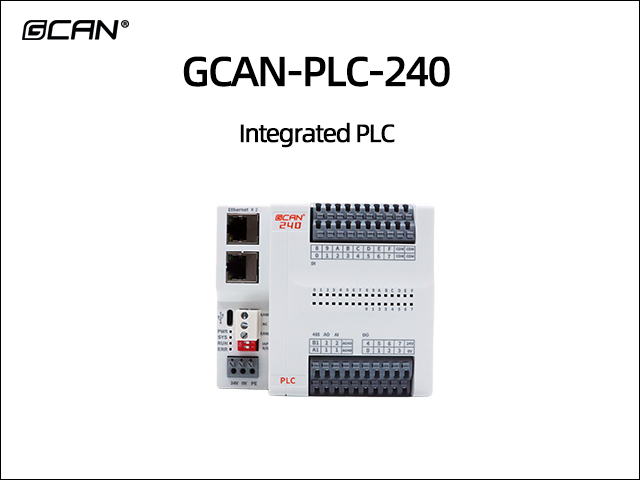

GCAN-PLC-240 Integrated PLC
- Brand:
- GCAN
- Model:
- GCAN-PLC-240
- Application:
- ● Industrial Automation Control Core ● Analog closed-loop control system ● Switching open-loop control, logical operation ● Industrial CAN bus, ModBUS bus network communication
-
1. Equipment Introduction
GCAN-PLC-240 is a programmable logic controller (PLC) that integrates bus control functionality and supports dual port network switching. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems.
The GCAN-PLC-240 product combines a microprocessor, integrated power supply, input circuit, and output circuit into a compact housing, forming a powerful PLC. After downloading the user program, the PLC will contain the logic required for the input and output devices in the monitoring application.
GCAN-PLC-240 can be programmed using OpenPCS software or CodeSys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.
The GCAN-PLC-240 not only completes digital/analog input/output, but also integrates various commonly used industrial field buses, such as CAN bus, RS485 bus, Ethetnet bus, and supports common communication protocols such as CANopen, Modbus RTU/TCP, etc.
2. Equipment parameters
● CPU clock speed: 400M;
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● 1 CAN channel; 1 RS485 channel; 2-channel Ethernet (network switching);
● Support CANopen master/slave station function;
● Supports Modbus RTU/TCP master/slave functionality;
● 8 channels of DO (3 channels of PWM pulse output); 16 DI channels (4 counting inputs);
● 2-channel AO, 2-channel AI (both can be customized for current or voltage type);
● The power supply adopts 24V DC (-15%/+20%);
● Communication isolation is 1500V DC;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN channel;
● Dimensions: (length) 115mm * (width) 100mm * (height) 58mm.
3. Application Fields
● Industrial Automation Control Core
● Analog closed-loop control system
● Switching open-loop control, logical operation
● Industrial CAN bus, ModBUS bus network communication
Welcome to inquire and learn more.
-
- ● CPU clock speed: 400M;
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● 1 CAN channel; 1 RS485 channel; 2-channel Ethernet (network switching);
● Support CANopen master/slave station function;
● Supports Modbus RTU/TCP master/slave functionality;
● 8 channels of DO (3 channels of PWM pulse output); 16 DI channels (4 counting inputs);
● 2-channel AO, 2-channel AI (both can be customized for current or voltage type);
● The power supply adopts 24V DC (-15%/+20%);
● Communication isolation is 1500V DC;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN channel;
● Dimensions: (length) 115mm * (width) 100mm * (height) 58mm.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
