CANopen IO coupler

  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
  • CANopen IO coupler
Brand:
GCAN
Model:
GCAN-IO-8000
Application:
buy now
  •

    1. Overview

    GCAN-IO-8000 CANopen IO Coupler can be used to connect CAN-bus system and distributed bus terminal module, and these terminal modules can be expanded in a modular way. A complete node consists of a bus coupler, 1-32 arbitrary number of IO modules and a terminal module

    GCAN-IO-8000 CANopen IO Coupler uses CAN-bus protocol in accordance with ISO 11898. The GCAN-IO-8000 CANopen Bus Coupler not only supports all CANopen communication, but it can also be easily applied to a manufacturer-specific CAN-bus environment. Besides, the firmware can be upgraded by configuring the interface.
    GCAN-IO-8000 CANopen Bus Coupler supports automatic configuration, and you do not need to set parameters on the PC. Baud rate can be configured via RS-232 interface.

    2. Performance

    · CANopen baud rate supports 1000k, 500k, 250k, 125k, 100k, 50k 10k
    · PDO mode supports synchronization, looping, event-driven, polling
    · Up to 32 bus terminal modules
    · Transmit 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
    · Configuration mode is automatic configuration
    · CAN interface: one open4 terminal
    · Supply power: 24V DC (-15%/+20%)
    · Input current, 70mA+ ( total GC-bus current), maximum 2.5A
    · Starting current: about 2.5 times continuous current
    · Power contacts: maximum 24V DC/maximum 10A
    · Electrical isolation: 1500 Vrms
    · Working temperature: -40.00℃~ 85.00℃
    · Dimensions:100mm(L) * 69mm(W) * 48mm(H)

    3. Connection mode




    4. IO modules

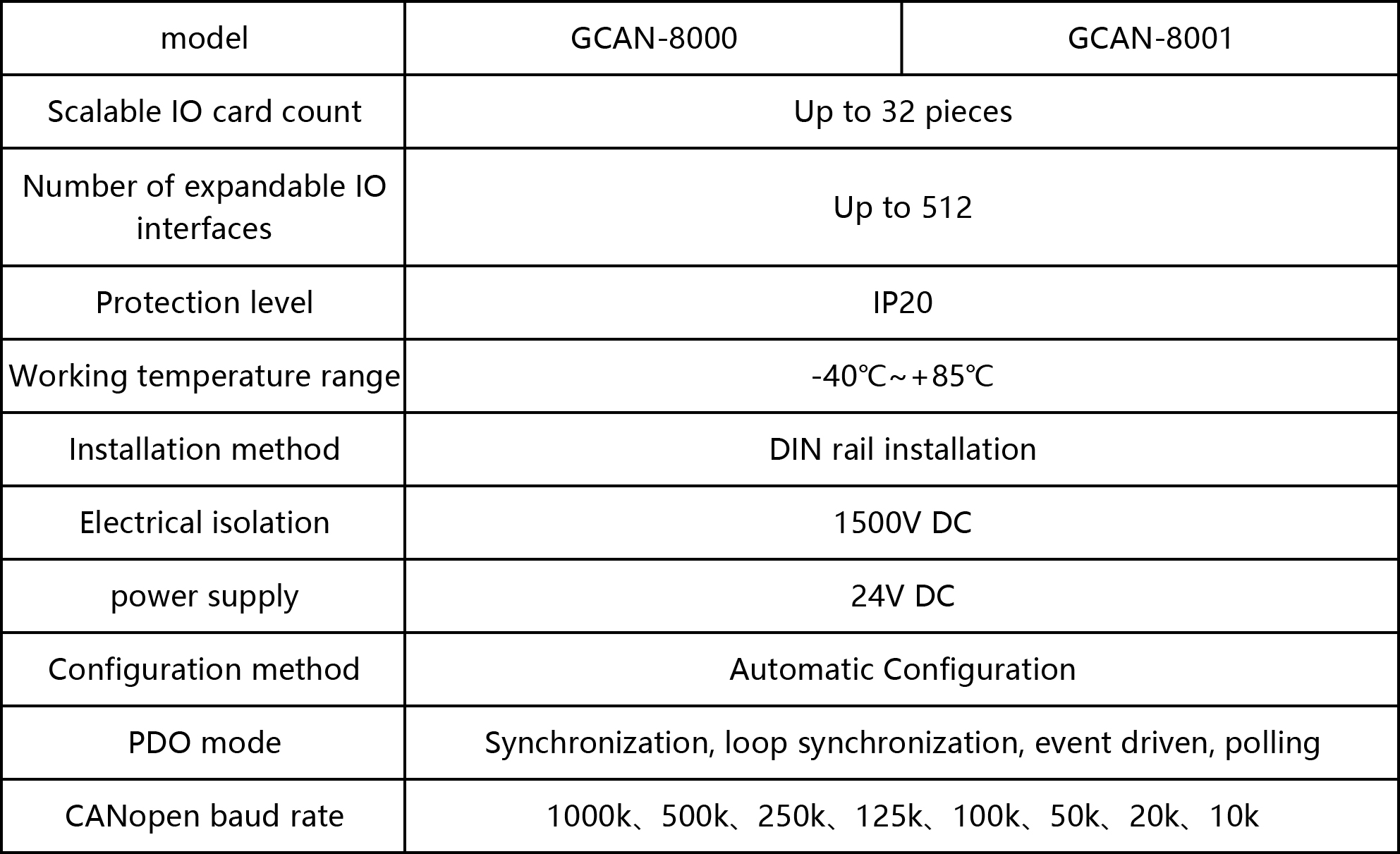

    5. Technical specifications


  • · CANopen baud rate supports 1000k, 500k, 250k, 125k, 100k, 50k 10k
    · PDO mode supports synchronization, looping, event-driven, polling
    · Up to 32 bus terminal modules
    · Transmit 4 PDOs ( CANopen) and receive 4 PDOs ( CANopen)
    · Configuration mode is automatic configuration
    · CAN interface: one open4 terminal
    · Supply power: 24V DC (-15%/+20%)
    · Input current, 70mA+ ( total GC-bus current), maximum 2.5A
    · Starting current: about 2.5 times continuous current
    · Power contacts: maximum 24V DC/maximum 10A
    · Electrical isolation: 1500 Vrms
    · Working temperature: -40.00℃~ 85.00℃
    · Dimensions:100mm(L) * 69mm(W) * 48mm(H)
