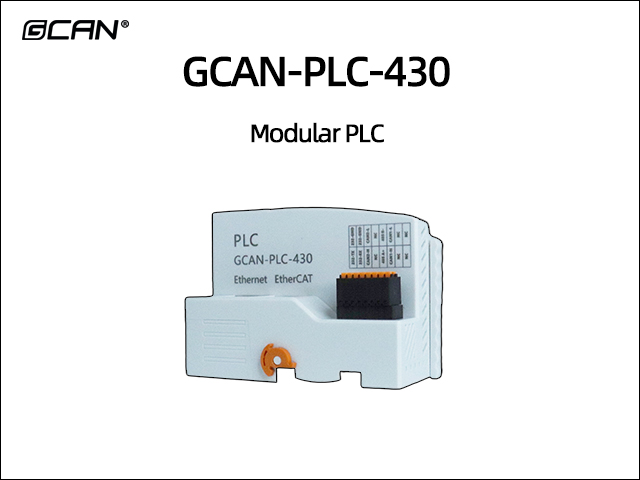

GCAN-PLC-430 Modular PLC
- Brand:
- GCAN
- Model:
- GCAN-PLC-430
- Application:
- ● Connect with the distributed bus terminal module to form a complete programmable control node.
-
1、 Equipment Introduction
GCAN-PLC-430 is a programmable logic controller (PLC) with integrated bus control function and EtherCAT master control. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems, and can be expanded through plug-in IO modules. The GCAN-PLC-430 product consists of a programmable main control module, several GC series IO modules (GC-1008, GC-2008, etc.), and a terminal resistor module. The GCAN-PLC-430 main control module can connect all GC series IO modules, and users can choose to expand IO modules according to their actual needs on site. The maximum number of IO modules can be expanded by 32, and the main control module can automatically allocate addresses according to the front and rear positions of the inserted IO modules, achieving automatic configuration.
GCAN-PLC-430 can be programmed using OpenPCS software or CodeSys V3.5SP16 and above software versions. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient. GCAN-PLC-430 not only can complete various digital/analog input/output, but also integrates multiple commonly used industrial field buses, such as CAN bus, 485 bus, 232 bus, Ethernet bus, EtherCAT bus, and supports common communication protocols such as CANopen, Modbus RTU, Modbus TCP, EtherCAT, etc.
2、 Equipment parameters
● 1 EtherNet; 1 EtherCAT channel; 2-channel CAN; 1 RS485 channel; 1 RS232 channel;
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● Support CANopen protocol master/slave station function;
● Supports Modbus RTU/TCP master/slave functionality;
● Support EtherCAT master station function; Number of Slave Stations: Up to 10 EtherCAT Slave Stations;
● The configuration mode is in the form of automatic configuration;
● The power supply adopts 24V DC; The maximum input current is 1A;
● Communication isolation is 1500V DC;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN1 channel.
3、 Application Fields
● Connect with the distributed bus terminal module to form a complete programmable control node.
Welcome to inquire and learn more.
-
- ● 1 EtherNet; 1 EtherCAT channel; 2-channel CAN; 1 RS485 channel; 1 RS232 channel;
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● Support CANopen protocol master/slave station function;
● Supports Modbus RTU/TCP master/slave functionality;
● Support EtherCAT master station function; Number of Slave Stations: Up to 10 EtherCAT Slave Stations;
● The configuration mode is in the form of automatic configuration;
● The power supply adopts 24V DC; The maximum input current is 1A;
● Communication isolation is 1500V DC;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN1 channel.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
