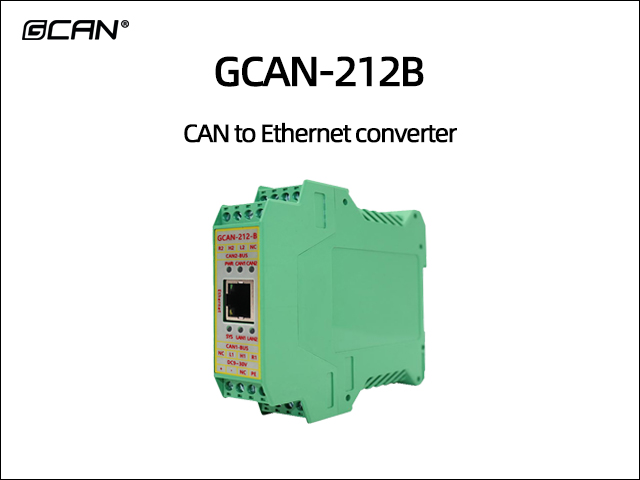

GCAN-212B CAN to Ethernet converter
- Brand:
- GCAN
- Model:
- GCAN-212B
- Application:
- CAN bus network diagnosis and testing, industrial Ethernet connection to CAN network, power communication network, industrial control equipment, high-speed, large data communication
-
1、 Equipment Introduction
Guangcheng Technology GCAN-212-B (CANET-II) is a high-performance CAN bus communication interface card that integrates 2 CAN interfaces and 1 Ethernet interface. By using the GCAN-212-B high-performance CAN interface card, users can easily interconnect CAN bus networks and Ethernet networks, further expanding the scope of CAN bus networks. Guangcheng Technology GCAN-212-B high-performance CAN interface card is a powerful tool for CAN bus product development and CAN bus data analysis. PCs can quickly connect to CAN bus networks through Ethernet interfaces, forming CAN bus network control nodes for data processing and data acquisition in CAN bus network fields such as fieldbus laboratories, industrial control, intelligent communities, and automotive electronic networks. At the same time, this device has the characteristics of small size, plug and play, and is also the best choice for portable system users.
The GCAN-212-B of Guangcheng Technology has integrated a CAN interface electrical isolation protection module, which prevents equipment damage caused by instantaneous overcurrent/overvoltage and enhances the reliability of the system in harsh environments. Guangcheng Technology GCAN-212-B high-performance CAN interface card supports secondary development. Our company provides users with the GCAN-212-B connection routine code in VB environment. Users can develop their own GCAN-212-B testing software or integrate GCAN-212-B into existing software systems based on this routine. The routine code complies with Socket communication rules.
2、 Equipment parameters
● High speed 32-bit industrial grade processor;
● Embedded hardware watchdog timer;
● The module has a built-in FLASH memory that can store parameters;
● Use an external power supply (DC+9~24V) for power supply
● Power supply current: 50mA (24V DC);
● Electrostatic discharge immunity level: Contact discharge ± 2KV, air discharge ± 15KV;
● Electrical fast transient burst immunity level: ± 1KV;
● Surge immunity level: ± 1KV;
● Working temperature range: -40 ℃~+85 ℃;
● Working humidity range: 5%~95% RH without condensation;
● The installation method of screw fixation is specifically designed for industrial use.
● Integrate 2 CAN bus interfaces and use Phoenix terminal wiring method;
● The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
● CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
● The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V;
● 32 hardware FIFO receive buffers, maximum data transmission rate: 8000 frames per second; Maximum received data traffic: 14000 frames per second;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us.
● Using standard Ethernet interfaces, RJ45， Support 10/100M adaptive;
● Support heartbeat and timeout disconnect function;
● The working port, target IP, and target port can all be set;
● Automatically restore connection resources after network disconnection and reliably establish TCP connections;
● Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), and the communication software on the upper computer follows standard SOCKET rules.
3、 Application Fields
● CAN bus network diagnosis and testing
● Industrial Ethernet connection to CAN network
● Electric power communication network
● Industrial control equipment
● High speed and large data communication
Welcome to inquire and learn more.
-
- ● High speed 32-bit industrial grade processor;
● Embedded hardware watchdog timer;
● The module has a built-in FLASH memory that can store parameters;
● Use an external power supply (DC+9~24V) for power supply
● Power supply current: 50mA (24V DC);
● Electrostatic discharge immunity level: Contact discharge ± 2KV, air discharge ± 15KV;
● Electrical fast transient burst immunity level: ± 1KV;
● Surge immunity level: ± 1KV;
● Working temperature range: -40 ℃~+85 ℃;
● Working humidity range: 5%~95% RH without condensation;
● The installation method of screw fixation is specifically designed for industrial use.
● Integrate 2 CAN bus interfaces and use Phoenix terminal wiring method;
● The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
● CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS 11898 specification;
● The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V;
● 32 hardware FIFO receive buffers, maximum data transmission rate: 8000 frames per second; Maximum received data traffic: 14000 frames per second;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us.
● Using standard Ethernet interfaces, RJ45， Support 10/100M adaptive;
● Support heartbeat and timeout disconnect function;
● The working port, target IP, and target port can all be set;
● Automatically restore connection resources after network disconnection and reliably establish TCP connections;
● Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), and the communication software on the upper computer follows standard SOCKET rules.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
