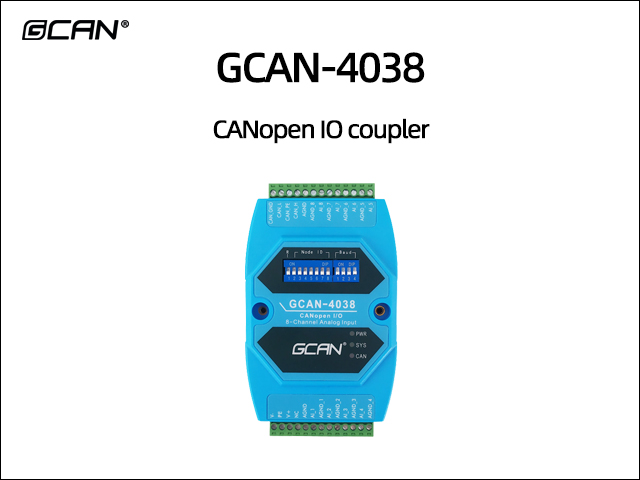

GCAN-4038 CANopen IO coupler
- Brand:
- GCAN
- Model:
- GCAN-4038
- Application:
- ● Industrial field network data monitoring; ● Remote communication for coal mines and oil wells; ● CAN teaching application remote communication; ● CAN industrial automation control system; ● CAN-bus application systems such as intelligent building control data broadcasting systems.
-
1. Equipment Introduction
The GCAN-4038 module from Shenyang Guangcheng Technology is an industrial-grade CANopen analog signal acquisition module that integrates one standard CANopen interface and eight analog acquisition channels. By utilizing the GCAN-4038 module, users can acquire analog signals, establish a connection between remote analog signal acquisition devices and the CANopen network, and form a control node for analog signal acquisition within the CANopen network.
The GCAN-4038 module serves as a crucial tool for analog signal acquisition, and it also features compact size and convenient wiring. The bus interface of the GCAN-4038 module integrates an isolation protection module, protecting the module from damage caused by transient overvoltage and overcurrent. The DIN rail fixing method makes it easier to integrate into various control cabinets.
2. Equipment Parameters
● CAN-bus supports the CAN2.0A frame format, which complies with the ISO/DIS 11898 specification;
● CAN-bus communication baud rate supports 8 standard communication baud rates;
● The CAN-bus interface employs electrical isolation, with the isolation module having an insulation voltage of DC 1500V;
● Powered by 9~30V DC, with a current consumption of 140mA (quiescent current: 40mA);
● Number of analog input channels: 8 channels;
● Analog input signal: Supports -5V to +5V, -10V to +10V, and -20mA to +20mA;
● AI and CANopen interfaces utilize terminal interfaces;
● Configure the module baud rate and node number using the dip switch;
● The available supporting card rail connectors can be installed onto the DIN card rail;
● Operating temperature range: -40℃~+85℃;
3. Application Fields
● Industrial field network data monitoring;
● Remote communication for coal mines and oil wells;
● CAN teaching application remote communication;
● CAN industrial automation control system;
● CAN-bus application systems such as intelligent building control data broadcasting systems.
Welcome to inquire and learn more.
-
- ● CAN-bus supports the CAN2.0A frame format, which complies with the ISO/DIS 11898 specification;
● CAN-bus communication baud rate supports 8 standard communication baud rates;
● The CAN-bus interface employs electrical isolation, with the isolation module having an insulation voltage of DC 1500V;
● Powered by 9~30V DC, with a current consumption of 140mA (quiescent current: 40mA);
● Number of analog input channels: 8 channels;
● Analog input signal: Supports -5V to +5V, -10V to +10V, and -20mA to +20mA;
● AI and CANopen interfaces utilize terminal interfaces;
● Configure the module baud rate and node number using the dip switch;
● The available supporting card rail connectors can be installed onto the DIN card rail;
● Operating temperature range: -40℃~+85℃;
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
