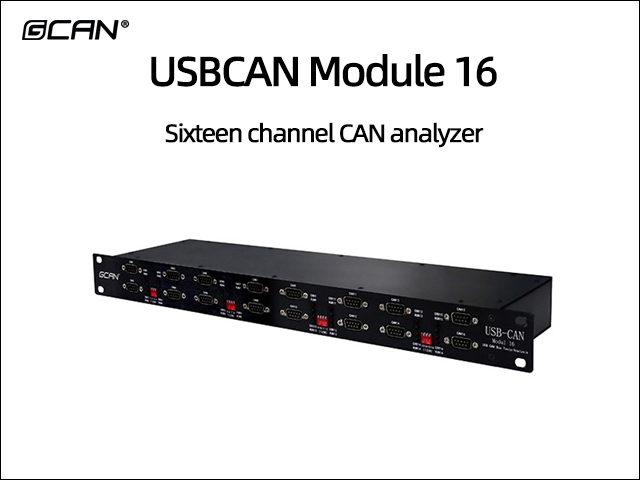

USBCAN Module 16 Sixteen channel CAN analyzer
- Brand:
- GCAN
- Model:
- USBCAN Module 16
- Application:
- ● CAN bus network diagnosis and testing ● Automotive Electronics Applications ● Electric power communication network ● Industrial control equipment ● High speed and big data connectivity
-
1、 Equipment Introduction
USBCAN Module 16 is a high-performance CAN Bus communication interface card that integrates 16 CAN interfaces. This model of CAN card is compatible with the USB 2.0 bus full speed specification and uses a USB CAN Module 16 high-performance CAN interface card. PCs can quickly connect to CAN Bus networks through the USB interface, forming CAN Bus network control nodes for data processing and data acquisition in CAN Bus network fields such as fieldbus laboratories, industrial control, intelligent communities, and automotive electronic networks.
The USBCAN Module 16 high-performance CAN interface card is a powerful tool for CAN Bus product development and data analysis. It also has the characteristics of small size, plug and play, and is the best choice for portable system users. The USBCAN Module 16 interface card comes with a built-in USB interface and an integrated CAN interface electrical isolation protection module, which prevents equipment damage caused by transient overcurrent/overvoltage and enhances the reliability of the system in harsh environments.
Shenyang Guangcheng Technology USBCAN Modular 16 high-performance CAN interface card supports 32-bit/64 bit operating systems such as Windows XP/Win7/Win10, and can also support Linux operating systems. Our company provides users with a unified application programming interface and complete application demonstration code, including VC, VB,. Net, Delphi, Labview, and C++Builder development routine demonstrations, to facilitate user application development.
2、 Equipment parameters
● The PC interface complies with the USB 2.0 full speed specification and is compatible with USB 1.1 and USB 3.0;
● Integrate 16 CAN Bus interfaces and use DB9 wiring method;
● Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
● CAN Bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● Use DC+24V power supply for power supply;
● The CAN Bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V;
● Maximum received data traffic: 14000 fps;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us;
● Support Windows operating systems such as WinXP, Win7, Win10, etc;
● Support Linux operating system;
● Support ECANTools testing software;
● Working temperature range: -40 ℃~+85 ℃
3、 Application Fields
● CAN bus network diagnosis and testing
● Automotive Electronics Applications
● Electric power communication network
● Industrial control equipment
● High speed and big data connectivity
Welcome to inquire and learn more.
-
- ● The PC interface complies with the USB 2.0 full speed specification and is compatible with USB 1.1 and USB 3.0;
● Integrate 16 CAN Bus interfaces and use DB9 wiring method;
● Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
● CAN Bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● Use DC+24V power supply for power supply;
● The CAN Bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 1500V;
● Maximum received data traffic: 14000 fps;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us;
● Support Windows operating systems such as WinXP, Win7, Win10, etc;
● Support Linux operating system;
● Support ECANTools testing software;
● Working temperature range: -40 ℃~+85 ℃
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
