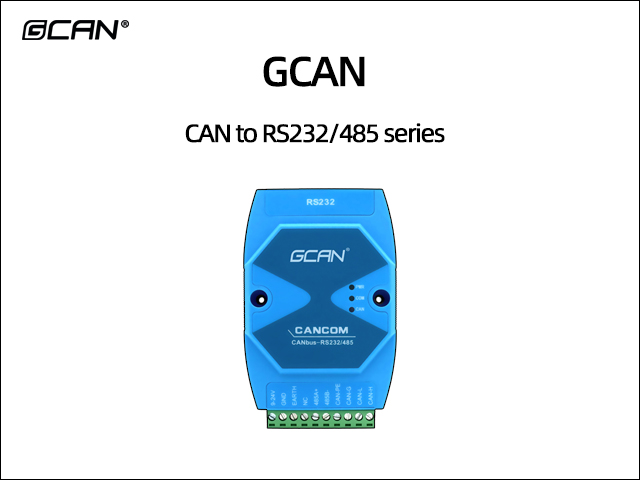

CAN to RS232/485 series
- Brand:
- GCAN
- Model:
- GCAN-201/207
- Application:
- Existing RS-232 devices are connected to the CAN bus network; ● Extend the standard RS-232 network communication length; PLC equipment is connected to the CAN bus network for communication; Gateway bridge between CAN bus and serial bus; Industrial site network data monitoring; Remote communication for coal mines and oil wells; ● Remote communication for CAN teaching applications; CAN industrial automation control system; Intelligent building control data broadcasting system and other CAN bus application systems.
-
1. Equipment advantages
● Supports bidirectional conversion of CAN and RS232 data.
● Supports bidirectional conversion of CAN and RS485 data.
● Supports three data conversion modes.
● Source manufacturer, short delivery time, fast delivery.
● Easy to install and integrate.
● Stable work and wide temperature operation.
● Good technical support, dedicated personnel for coordination.
● Support OEM customization.
● Isolation protection against interference.
● High cost-effectiveness, one-year warranty.
2. Equipment parameters
The Shenyang Guangcheng Technology CAN to RS232/485 serial converter includes:
(1) GCAN-201
(2) GCAN-207

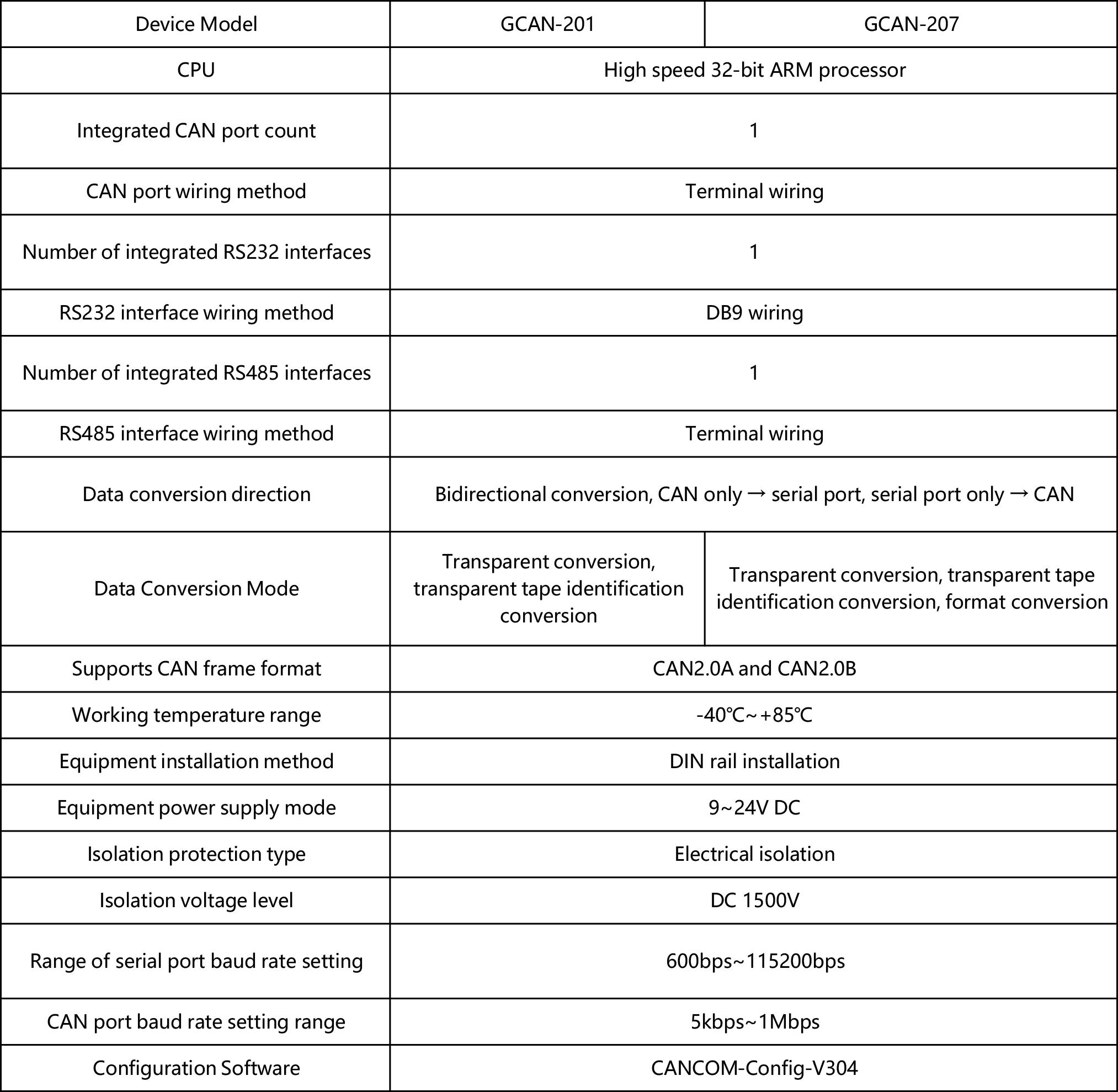

Their device parameters are shown in the following figure:
3. Application Fields
The application areas of Shenyang Guangcheng Technology's CAN to RS232/485 serial port converter include:
● Existing RS-232 devices are connected to the CAN bus network;
● Extend the standard RS-232 network communication length;
● PLC equipment connected to CAN bus network communication;
● Gateway bridge between CAN bus and serial bus;
● Industrial site network data monitoring;
● Remote communication for coal mines and oil wells;
● CAN teaching application remote communication;
● CAN industrial automation control system;
● Intelligent building control data broadcasting system and other CAN bus application systems.
Welcome to inquire and learn more
-
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
