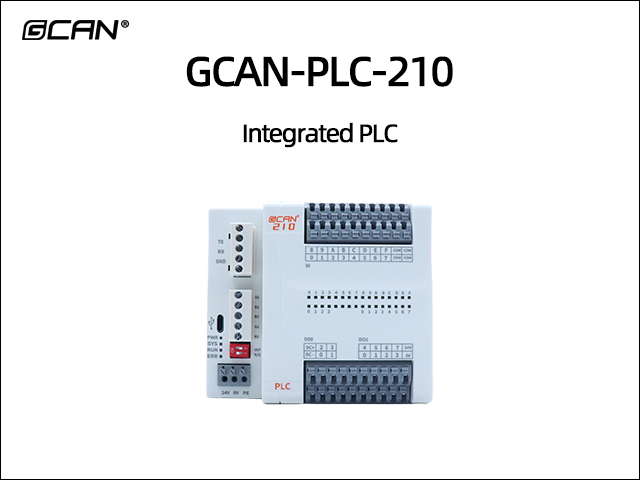

GCAN-PLC-210 Integrated PLC
- Brand:
- GCAN
- Model:
- GCAN-PLC-210
- Application:
- ● Industrial Automation Control Core ● Analog closed-loop control system ● Switching open-loop control, logical operation ● ModBUS bus network communication
-
1. Equipment Introduction
GCAN-PLC-210 is a programmable logic controller (PLC) with integrated bus control function. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to Modbus systems, etc.
The GCAN-PLC-210 product combines a microprocessor, integrated power supply, input circuit, and output circuit into a compact housing, forming a powerful PLC. After downloading the user program, the PLC will contain the logic required for the input and output devices in the monitoring application.
GCAN-PLC-210 can be programmed using OpenPCS software or CodeSys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.
GCAN-PLC-210 not only completes digital input/output, but also integrates various commonly used industrial fieldbus, such as RS232/485 bus, and supports common communication protocols such as Modbus RTU.
2. Equipment parameters
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● 1 RS232 channel; 2 RS485 channels;
● Supports Modbus RTU master/slave functionality;
● 8 ordinary DO channels (multiplexed with 3 PWM pulse outputs)+4 high current DO channels (1A/channel);
● 16 DI channels (multiplexed with 4 counting inputs);
● The power supply adopts 24V DC (-15%/+20%);
● Communication isolation is 1500V DC (excluding RS232);
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel;
● Dimensions: (length) 115mm * (width) 100mm * (height) 58mm.
3. Application Fields
● Industrial Automation Control Core
● Analog closed-loop control system
● Switching open-loop control, logical operation
● ModBUS bus network communication
Welcome to inquire and learn more.
-
- ● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● 1 RS232 channel; 2 RS485 channels;
● Supports Modbus RTU master/slave functionality;
● 8 ordinary DO channels (multiplexed with 3 PWM pulse outputs)+4 high current DO channels (1A/channel);
● 16 DI channels (multiplexed with 4 counting inputs);
● The power supply adopts 24V DC (-15%/+20%);
● Communication isolation is 1500V DC (excluding RS232);
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel;
● Dimensions: (length) 115mm * (width) 100mm * (height) 58mm.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
