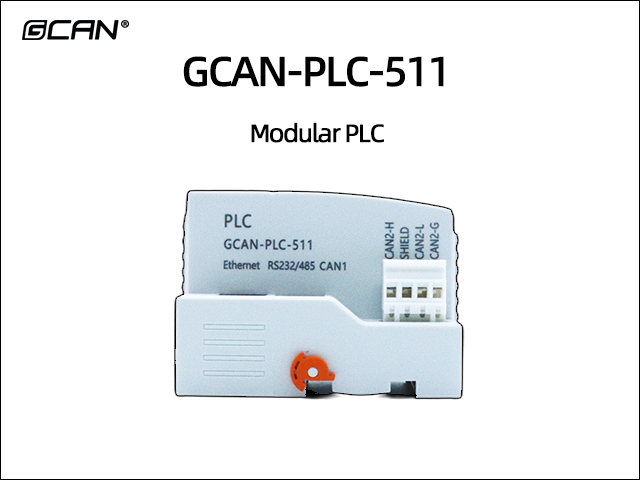

GCAN-PLC-511 Modular PLC
- Brand:
- GCAN
- Model:
- GCAN-PLC-511
- Application:
- ● Connect with the distributed bus terminal module to form a complete programmable control node.
-
1、 Equipment Introduction
GCAN-PLC-511 is a programmable logic controller (PLC) with integrated bus control function. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems, and can be expanded through plug-in modules.
The GCAN-PLC-511 series products consist of a programmable main control module (GCAN-PLC-511, etc.), several GC series IO modules (GC-1008, GC-3804, etc.), and a terminal resistor module (GC-0001). The main control modules such as GCAN-PLC-511 can connect to all GC series IO modules. Users can choose to expand IO modules according to their actual needs on site. With sufficient power supply, the maximum number of IO modules can be expanded by 32. When the number of expansion modules exceeds 16, an additional IO power supply expansion module GC 8012 needs to be added to ensure sufficient power supply. The main control module can automatically allocate addresses based on the front and rear positions of the inserted IO modules, achieving automatic configuration. Users do not need to create a configuration interface or set parameters on the PC.
GCAN-PLC-511 can be programmed using OpenPCS software or CodeSys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.
2、 Equipment parameters
● 2 CAN bus interfaces, 1 Ethernet interface, 1 RS232 interface, 1 RS485 interface;
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● Support CANopen protocol master/slave station function;
● Support Modbus RTU/TCP master/slave functionality;
● Under sufficient power supply, the maximum number of expandable IO modules is 32 (up to 32x8 DI/DO points); When the number of expansion modules exceeds 16, an additional IO powered expansion module GC 8012 needs to be added to ensure sufficient power supply;
● By default, send 4 PDOs (CANopen) and receive 4 PDOs (CANopen);
● The configuration mode is in the form of automatic configuration;
● The power supply adopts 24VDC (18~30V);
● The maximum input current is 400mA (total GC bus current);
● Starting current: approximately 2.5 times the continuous current;
● Power contact: maximum 24VDC;
● Electrical isolation is 1500Vrms;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
3、 Application Fields
● Connect with the distributed bus terminal module to form a complete programmable control node.
Welcome to inquire and learn more.
-
- ● 2 CAN bus interfaces, 1 Ethernet interface, 1 RS232 interface, 1 RS485 interface;
● Programming software: OpenPCS/CodeSys (programming language compliant with IEC61131-3 standard);
● Support CANopen protocol master/slave station function;
● Support Modbus RTU/TCP master/slave functionality;
● Under sufficient power supply, the maximum number of expandable IO modules is 32 (up to 32x8 DI/DO points); When the number of expansion modules exceeds 16, an additional IO powered expansion module GC 8012 needs to be added to ensure sufficient power supply;
● By default, send 4 PDOs (CANopen) and receive 4 PDOs (CANopen);
● The configuration mode is in the form of automatic configuration;
● The power supply adopts 24VDC (18~30V);
● The maximum input current is 400mA (total GC bus current);
● Starting current: approximately 2.5 times the continuous current;
● Power contact: maximum 24VDC;
● Electrical isolation is 1500Vrms;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
