1、 Equipment advantages
● Supports CANopen, EtherCAT, and Modbus.
● There are a large number of expandable IOs and multiple types of expandable IOs.
● Supports all mainstream PLC programming languages.
● Source manufacturer, short delivery time, fast delivery.
● Code and OpenPCS programming software are optional.
● Stable work and wide temperature operation.
● Good technical support, dedicated personnel for coordination.
● Support OEM customization, optional combination and integrated design.
● Isolation protection against interference.
● High cost-effectiveness, one-year warranty.
Integrated PLC equipment link
（1）GCAN-PLC-200
（2）GCAN-PLC-210
（3）GCAN-PLC-220
（4）GCAN-PLC-230
（5）GCAN-PLC-240
Combination PLC device link (supports EtherCAT)
（1）GCAN-PLC-425
（2）GCAN-PLC-430
（3）GCAN-PLC-521
（4）GCAN-PLC-522
（5）GCAN-PLC-530
（6）GCAN-PLC-530C
（7）GCAN-PLC-535
Combination PLC device link (EtherCAT not supported)
（1）GCAN-PLC-301/302
（2）GCAN-PLC-320/321/322
（3）GCAN-PLC-325
（4）GCAN-PLC-400
（5）GCAN-PLC-510
（6）GCAN-PLC-511
PLC core development board
GCAN-PLCcore-M7

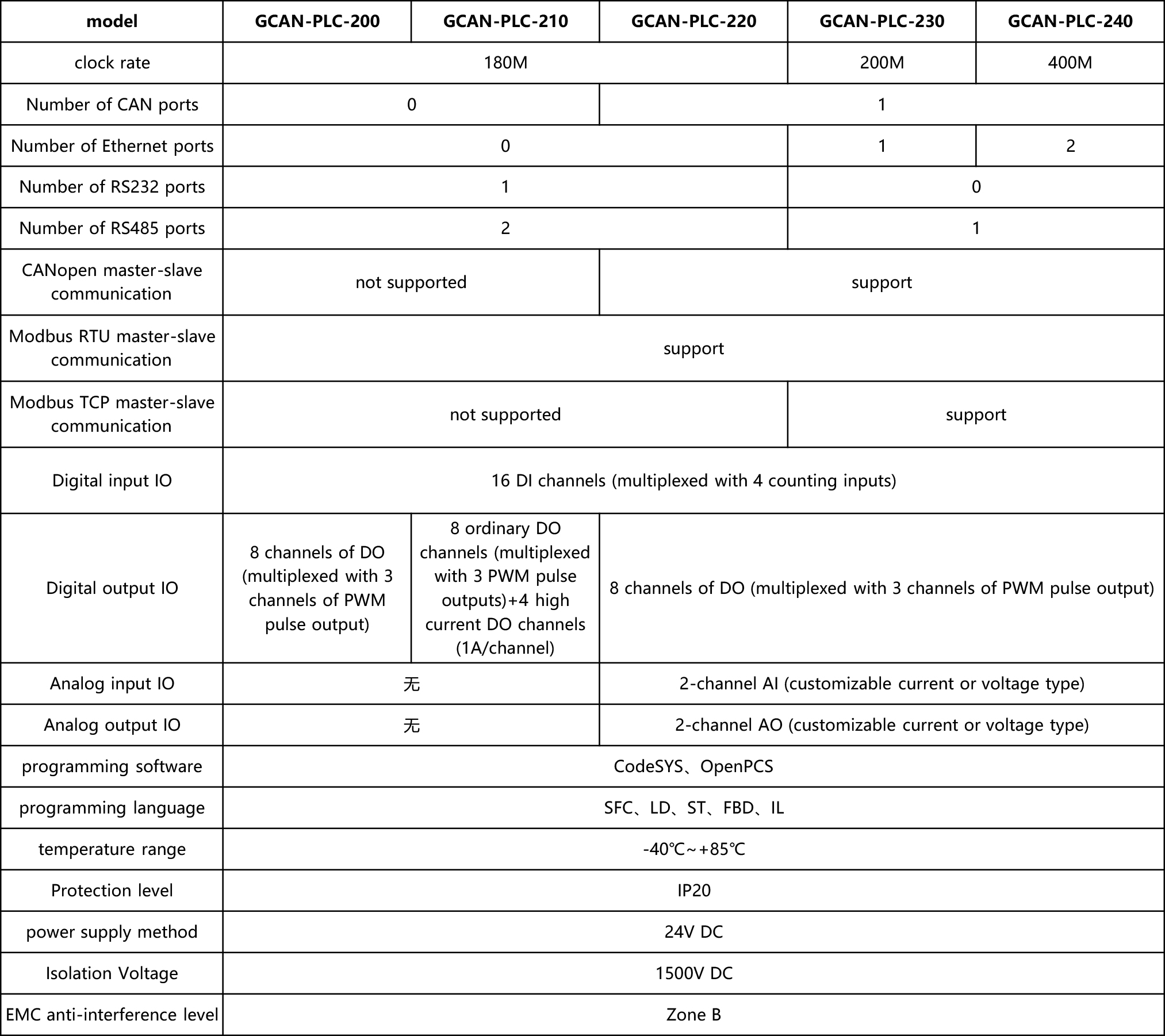

2. Integrated PLC parameter selection
3、 Parameter selection of modular PLC

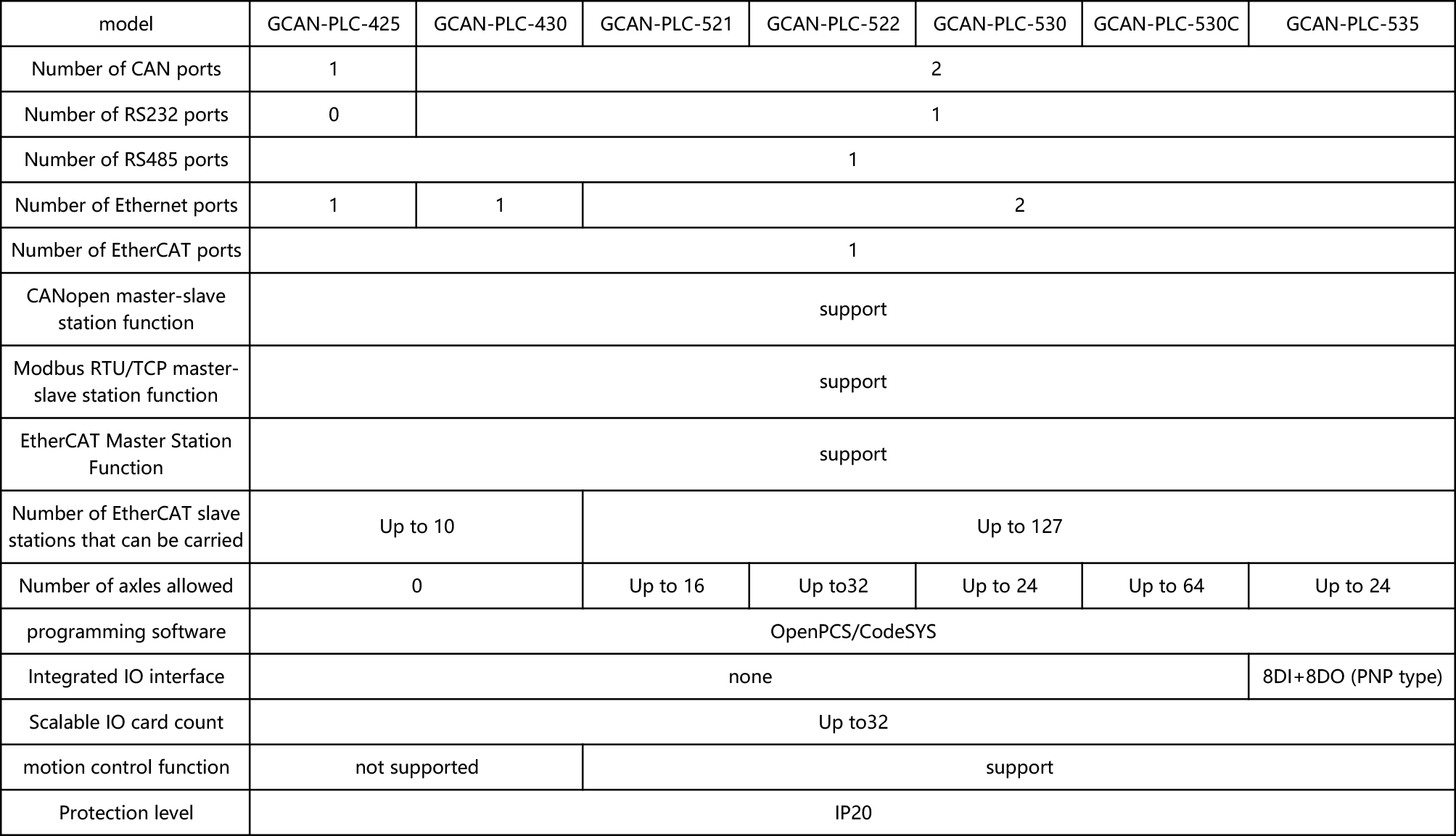

(1) Supports EtherCAT communication type

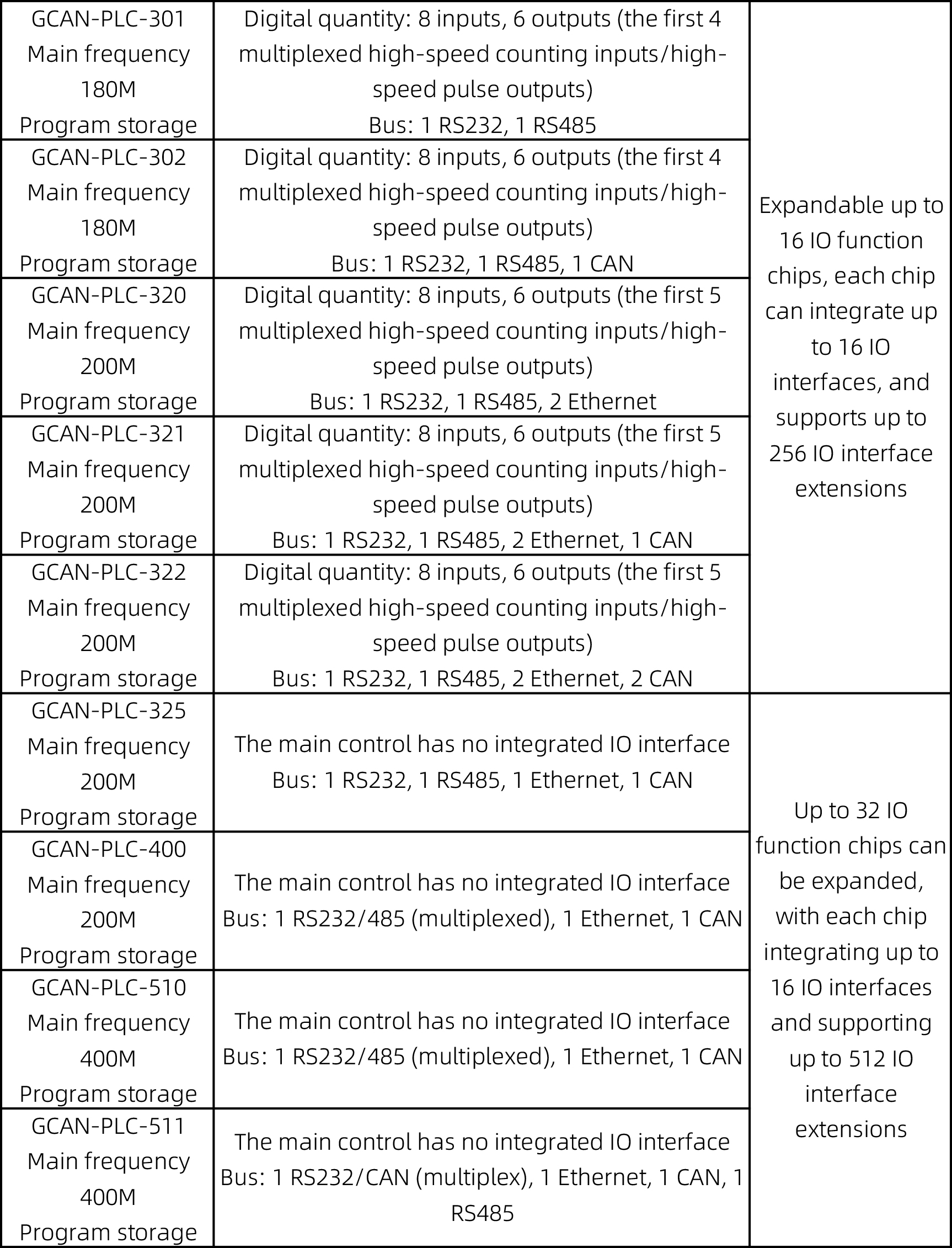

(2) Does not support EtherCAT communication type
4、 PLC core board parameters
The parameters of Guangcheng Technology GCAN-PLCCcore-M7 core board include:
● CPU：ARM ® 32-bit Cortex ®- M7 core, processor frequency 216MHz;
● 4-channel UART, 2-channel CAN, 1-channel 100M Ethernet;
● 8 channels of AD and 2 channels of DA;
● 40 digital inputs/outputs (multiplexed);
● 2 high-speed counter inputs and 2 PWM outputs;
● Dual 60 pin sockets (at the bottom) for easy access to various baseboards;
● 1 5V&3.3V test point, supporting external power supply or output power supply to the outside;
● 1 power indicator light, 1 status indicator light;
● 1 reset button, which can be used to reset MCU and LCD.
Welcome to inquire and learn more.
