IO Expansion Module Series
- Brand:
- GCAN
- Model:
- GC-1XXX/2XXX/3XXX/4XXX
- Application:
- (1) Can output standard analog signals to the outside according to instructions; (2) Can be used for adjusting the opening of control equipment such as valves and gates; (3) Connect the bus coupler or controller to achieve the transmission of analog signals. (4) Distributed data collection system collects digital data; (5) Industrial site collection of switch values, etc
-
1. Equipment Introduction
The GC series PLC extended I/O module (8/16 hole version) can be used to real-time collect digital signals, analog signals, etc., and send the collected values to the GCAN-PLC series expandable PLC main control module or GCAN-8X00 series coupler through the internal bus, while outputting digital signals and analog signals within the range; There are also special extension modules used to expand communication and other functions (not supported by GCAN-8X00 series couplers).
The GC series extended I/O modules can be used in conjunction with each other to achieve data acquisition and processing in industrial automation or distributed control systems.
2. Parameter selection

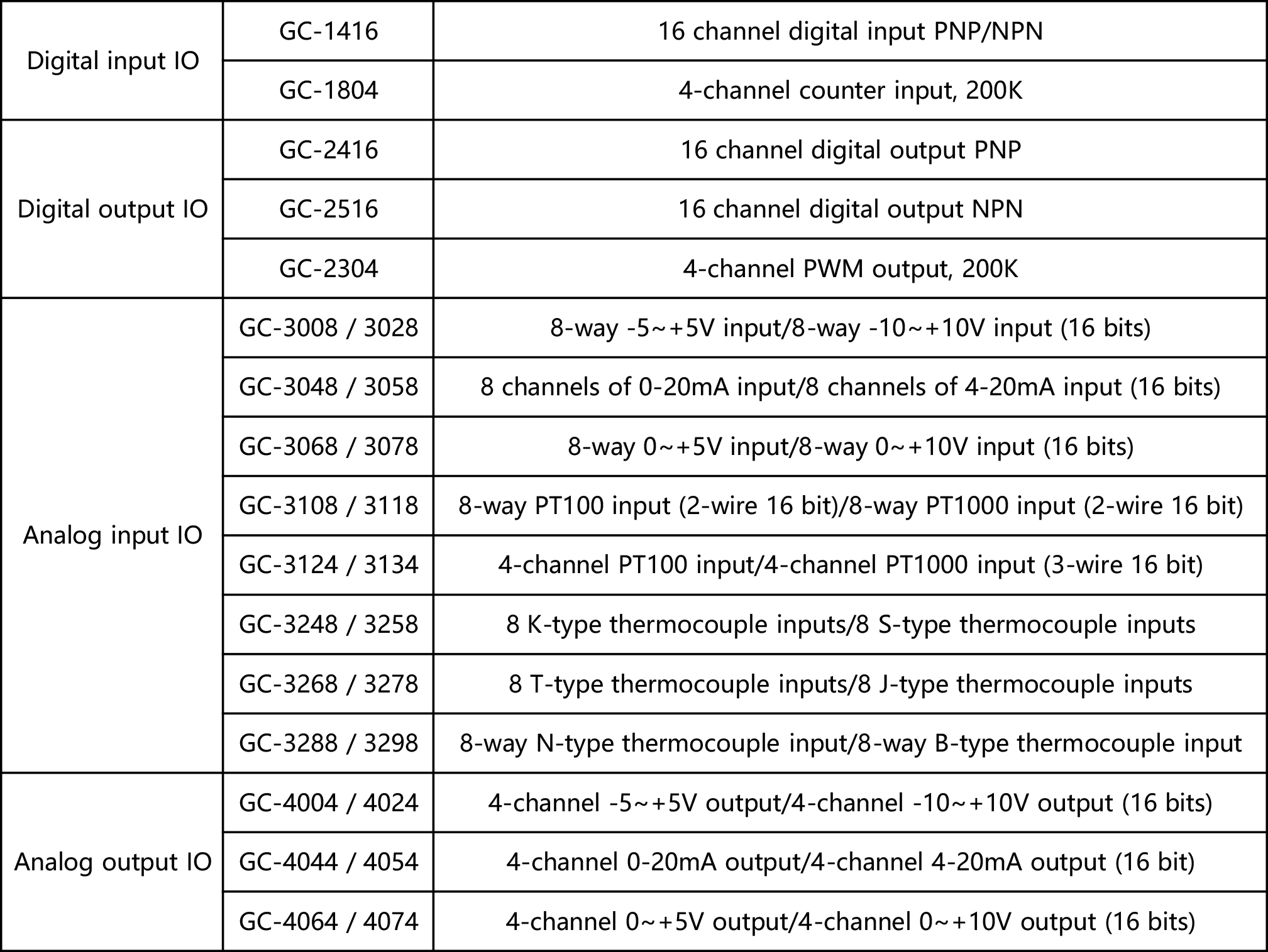

The first type of IO expansion module

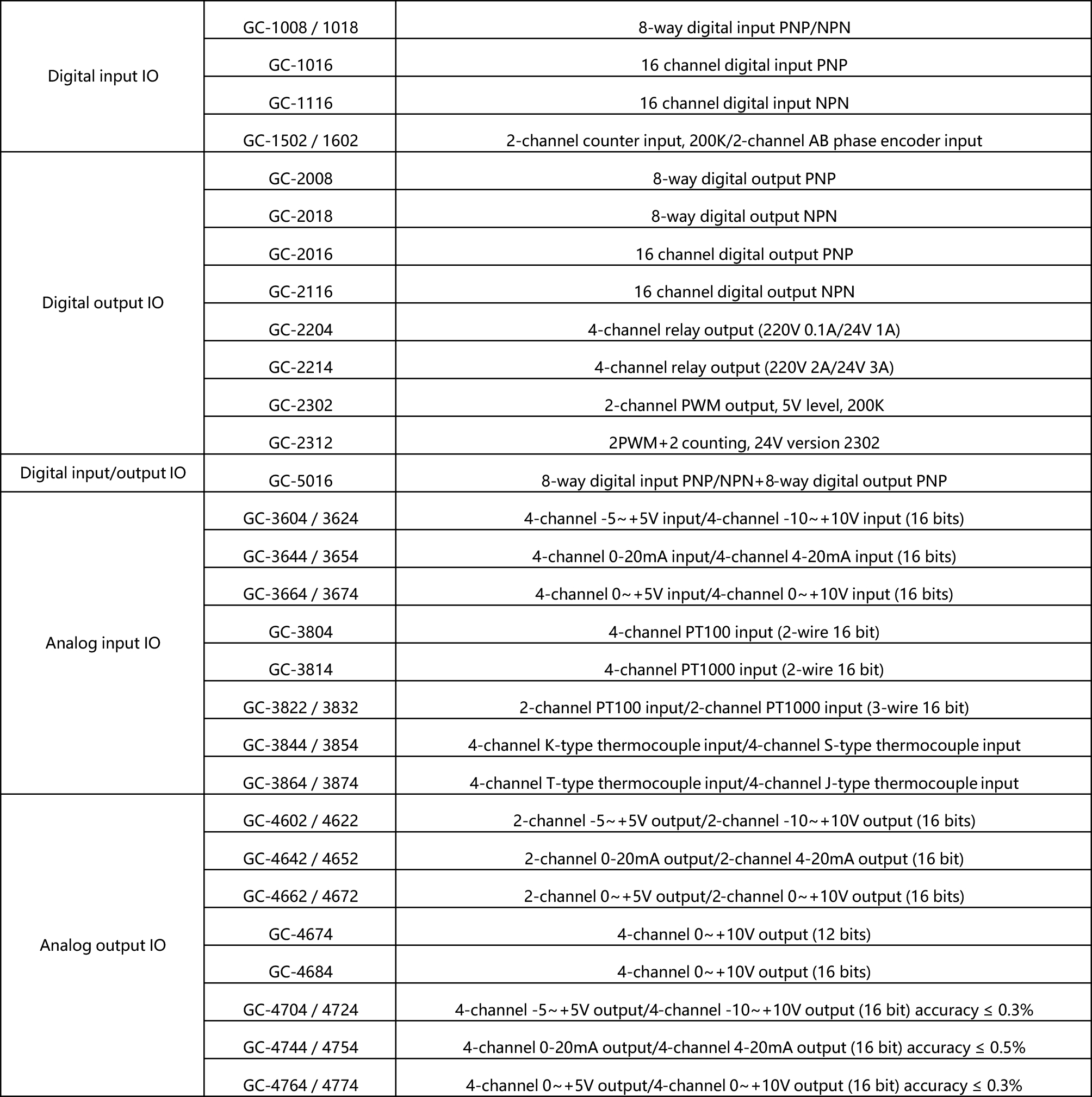

The second type of IO expansion module
Welcome to inquire and learn more -
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
