GCAN-GT-8221 EtherCAT Converter
- Brand:
- GCAN
- Model:
- GCAN-GT-8221
- Application:
- Connect with the distributed bus terminal module to form a complete control node; Perform data collection and transmit data using the EtherCAT protocol.
-
1. Function Overview
The GCAN-GT-8221 gateway is a high-performance EtherCAT slave to CAN/CANopen gateway module independently developed by our company based on the EtherCAT bus. The device integrates 2 EtherCAT bus interfaces and 1 CAN bus interface.
1) GCAN-GT-8321-XXX can serve as a gateway for EtherCAT bus master station, enabling communication between EtherCAT bus and CAN free port/CANopen slave station.
Note:

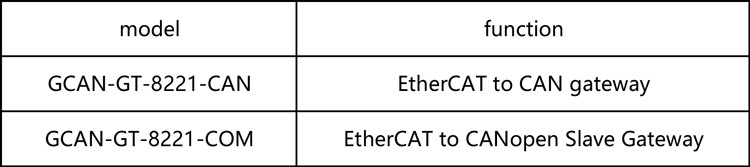

The corresponding sub model can only convert EtherCAT bus to one corresponding protocol, and the price varies depending on the protocol.
2. Performance characteristics
(1) Two EtherCAT bus interfaces, EtherCAT/IN and EtherCAT/OUT (RJ45);
(2) EtherCAT bus transmission rate: 100Mbps;
(3) EtherCAT bus transmission distance (station to station distance): 100m;
(4) 1 CAN bus interface;
(5) The power supply adopts 24V DC (-15%/+20%);
(6) Electrical isolation is 1500 VDC;
(7) Working temperature range: -40 ℃~+85 ℃;
(8) Relative humidity: 10%~95%, no condensation;
（9）EMC：Zone B，IEC61131-2；
(10) IP rating: IP20
3. Typical applications
(1) Connect with the distributed bus terminal module to form a complete control node;
(2) Perform data collection and transmit data using the EtherCAT protocol.
Welcome to inquire and learn more.
