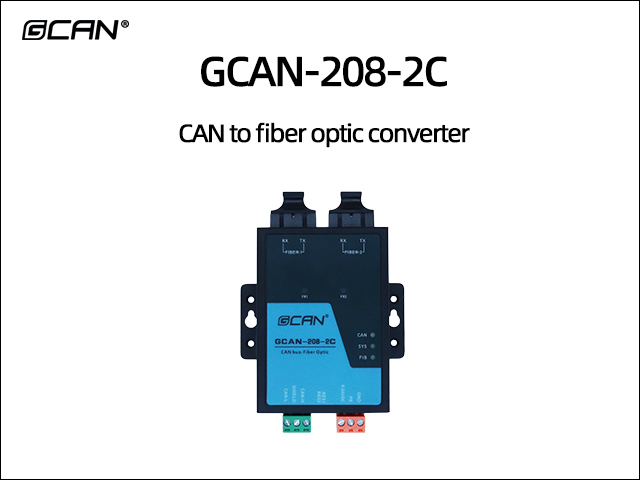

GCAN-208-2C CAN to fiber optic converter
- Brand:
- GCAN
- Model:
- GCAN-208-2C
- Application:
- ● CAN bus communication transformation; ● CAN bus cross-ocean long-distance communication; ● Anti-interference modification of CAN bus in areas with strong interference such as wind turbines; ● Long-distance communication between the main control room and the building; ● The fire alarm system is networked; ● Long-distance distributed communication system; ● New energy storage system.
-
1. Equipment introduction
The GCAN-208-2C series module from Shenyang Guangcheng Technology Co., Ltd. is an industrial-grade CAN bus to fiber optic converter that integrates two standard fiber optic interfaces (single mode, multimode, SC, ST, FC optional) and one standard CAN bus interface.
The GCAN-208-2C series module can transparently and losslessly convert CAN bus data into optical signals, and then transparently and losslessly parse the optical signals back into CAN bus data. Guangcheng Technology utilizes its unique bus signal conversion technology to achieve microsecond-level conversion time between CAN data and optical signals, thus ensuring real-time communication. The GCAN-208-2C supports any CAN bus communication protocol, such as CANopen, SAE J1939, DeviceNet, NMEA 2000, and more.
The GCAN-208-2C module features two sets of fiber optic interfaces, enabling fiber optic ring networking. Even if a node goes offline, it will not affect the normal communication of other nodes. This series of modules is a crucial tool for industrial bus retrofits, long-distance communication, and isolation from bus interference. The CAN bus interface of the module has integrated an isolation protection module, which prevents damage to the module due to transient overvoltage and overcurrent. It can also protect the bus from electromagnetic interference, ground loop interference, lightning strikes, and other damages to the bus and equipment.
The product has been widely used in systems from companies such as Gulf, Lida, Qingniao, Siemens, Yiai, Fanhai Sanjiang, Taihe An, Fu'an, Hao'an Security Technology, and Qingdao Haihui De Electric for a long time.
2. Equipment parameters
(1) Hardware features
● High-speed 32-bit industrial-grade processor;
● Embedded hardware watchdog timer;
● Power supply anti-reverse design, external power supply (9~36V DC); 50mA MAX (24V DC);
● Operating temperature range: -40℃~+85℃;
● Electrostatic discharge immunity level: contact discharge ±4KV, air discharge ±8KV;
● Electrical fast transient/burst immunity level: ±2KV;
● Surge immunity level: power interface ±1KV, CAN bus interface ±4KV;
● Complies with design specifications for mining product safety certification, fire protection product certification, intelligent vehicle networking, and energy storage, and can provide the necessary certification materials;
(2) CAN attribute
● Integrated with 1-channel CAN bus interface, using terminal wiring method;
● CAN bus signals include: CAN_H, CAN_L, and EARTH;
● The CAN bus comes with a built-in 120Ω terminal resistor, which can be selected through a dip switch;
● The CAN bus supports CAN2.0A and CAN2.0B frame formats, complying with the ISO/DIS 11898 specification;
● The baud rate of CAN bus communication can be configured through a dip switch within the range of 5Kbps to 800Kbps;
● The CAN bus interface adopts electrical isolation, with an isolation voltage of 3000V DC for the isolation module;
● Maximum throughput per channel: 6400 fps/s (CAN baud rate 800K, standard frame test);
(3) Optical fiber properties
● Fiber optic interfaces SC, ST, and FC are optional;
● Fiber transmission modes include single mode and multimode options;
● The number of optical fibers is available in single-core and dual-core options.
3. Application areas
● CAN bus communication transformation;
● CAN bus cross-ocean long-distance communication;
● Anti-interference modification of CAN bus in areas with strong interference such as wind turbines;
● Long-distance communication between the main control room and the building;
● The fire alarm system is networked;
● Long-distance distributed communication system;
● New energy storage system.
Welcome to inquire and learn more.
-
- (1) Hardware features
● High-speed 32-bit industrial-grade processor;
● Embedded hardware watchdog timer;
● Power supply anti-reverse design, external power supply (9~36V DC); 50mA MAX (24V DC);
● Operating temperature range: -40℃~+85℃;
● Electrostatic discharge immunity level: contact discharge ±4KV, air discharge ±8KV;
● Electrical fast transient/burst immunity level: ±2KV;
● Surge immunity level: power interface ±1KV, CAN bus interface ±4KV;
● Complies with design specifications for mining product safety certification, fire protection product certification, intelligent vehicle networking, and energy storage, and can provide the necessary certification materials;
(2) CAN attribute
● Integrated with 1-channel CAN bus interface, using terminal wiring method;
● CAN bus signals include: CAN_H, CAN_L, and EARTH;
● The CAN bus comes with a built-in 120Ω terminal resistor, which can be selected through a dip switch;
● The CAN bus supports CAN2.0A and CAN2.0B frame formats, complying with the ISO/DIS 11898 specification;
● The baud rate of CAN bus communication can be configured through a dip switch within the range of 5Kbps to 800Kbps;
● The CAN bus interface adopts electrical isolation, with an isolation voltage of 3000V DC for the isolation module;
● Maximum throughput per channel: 6400 fps/s (CAN baud rate 800K, standard frame test);
(3) Optical fiber properties
● Fiber optic interfaces SC, ST, and FC are optional;
● Fiber transmission modes include single mode and multimode options;
● The number of optical fibers is available in single-core and dual-core options.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
