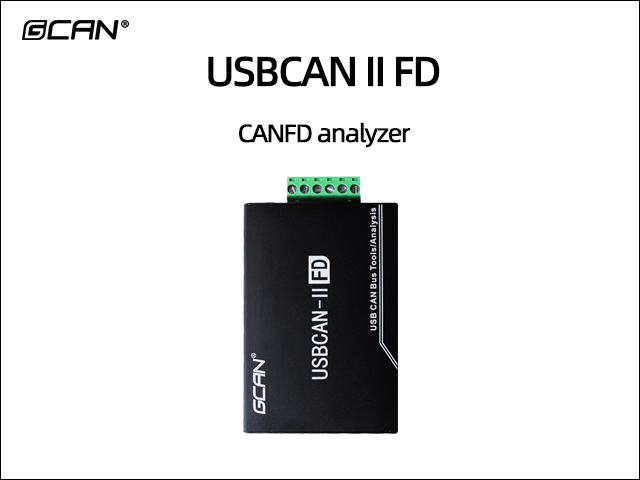

USBCAN II FD CANFD analyzer

  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
  • USBCAN II FD CANFD analyzer
Brand:
GCAN
Model:
USBCAN II FD
Application:
● CAN (FD) - bus network diagnosis and testing ● Automotive electronic applications ● Electric power communication network ● Industrial control equipment ● High speed and large data communication
More details
  • 1、 Equipment Introduction

    USBCAN-II FD is a high-performance bus communication interface card that integrates two CANFD interfaces. This model of CAN card complies with the USB 2.0 bus high-speed specification, has two independent CAN/CAN FD channels, and the signals are isolated from each other. PC can quickly connect to CAN (FD) - bus network through USB interface, forming CAN (FD) - bus network control nodes for data processing and data acquisition in CAN (FD) - bus network fields such as fieldbus laboratory, industrial control, intelligent community, and automotive electronic network.

    The USBCAN-II FD high-performance CAN interface card is a powerful tool for CAN (FD) - bus product development and CAN (FD) - bus data analysis. It also has the characteristics of small size, plug and play, and is the best choice for portable system users. The USBCAN-II FD interface card comes with a USB interface and an integrated CAN interface electrical isolation protection module, which prevents equipment damage caused by transient overcurrent/overvoltage and enhances the reliability of the system in harsh environments.

    The USBCAN-II FD high-performance CAN interface card supports 32-bit/64 bit Windows operating systems such as Windows XP, 7, 8, 10, etc. Our company provides users with a unified application programming interface and complete application demonstration code, with development routine demonstrations to facilitate application development.

    The USBCAN-II FD interface card can use our company's independently developed ECANTools universal testing software, which can perform functions such as sending, receiving, and monitoring CAN (FD) - bus messages.

    2、 Equipment parameters

    ● The PC interface complies with the USB 2.0 full speed specification and is compatible with USB 1.1 and USB 3.0;

    Integrate 2 CANFD interfaces and use plug-in terminal wiring method;
    Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
    The CAN communication baud rate can be programmed between 10Kbps and 1Mbps;
    The maximum baud rate supported by CANFD communication can reach 5M;
    Use USB bus power supply or external power supply (DC+5V, 130mA) for power supply;
    The CAN (FD) - bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 2500V;
    Maximum received data traffic: 14000 fps;
    The timestamp accuracy of receiving messages on the CAN end can reach 1us;
    Supports Windows XP, 7, 8, 10 and other Windows operating systems;
    Support ECANTools testing software;
    Support secondary development;
    Working temperature range: -40 ℃~+85 ℃.

    3、 Application Fields


    CAN (FD) - bus network diagnosis and testing
    Automotive electronic applications
    Electric power communication network
    Industrial control equipment
    High speed and large data communication

    Welcome to inquire and learn more.


  • ● The PC interface complies with the USB 2.0 full speed specification and is compatible with USB 1.1 and USB 3.0;
    Integrate 2 CANFD interfaces and use plug-in terminal wiring method;
    Supports CAN2.0A and CAN2.0B frame formats, compliant with ISO/DIS 11898 specifications;
    The CAN communication baud rate can be programmed between 10Kbps and 1Mbps;
    The maximum baud rate supported by CANFD communication can reach 5M;
    Use USB bus power supply or external power supply (DC+5V, 130mA) for power supply;
    The CAN (FD) - bus interface adopts electrical isolation, and the insulation voltage of the isolation module is DC 2500V;
    Maximum received data traffic: 14000 fps;
    The timestamp accuracy of receiving messages on the CAN end can reach 1us;
    Supports Windows XP, 7, 8, 10 and other Windows operating systems;
    Support ECANTools testing software;
    Support secondary development;
    Working temperature range: -40 ℃~+85 ℃.
  • Packing

    Standard package:Carton

    Delivery Time

    2~5 days after receipt of your payment by air express

    After-sale service

    GCAN provide one year free after-sales warranty,lifetime free software and technical support.
