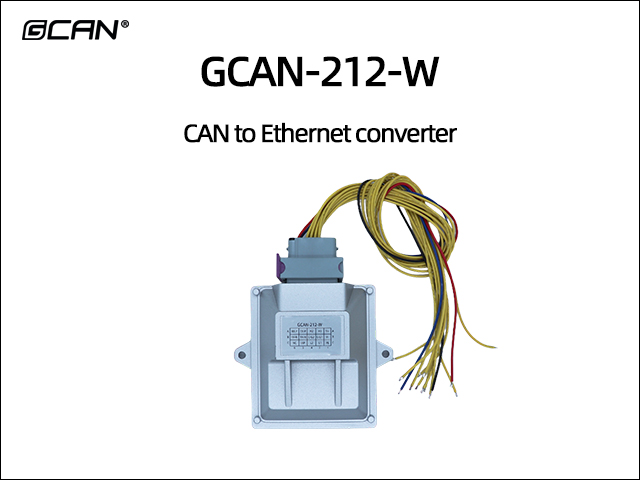

GCAN-212-W CAN to Ethernet converter
- Brand:
- GCAN
- Model:
- GCAN-212-W
- Application:
- (1) CAN bus network diagnosis and testing (2) Industrial Ethernet connection to CAN network (3) Electric power communication network (4) Industrial control equipment (5) High speed and large data communication
-
1. Equipment Introduction
Guangcheng Technology GCAN-212-W is an industrial grade high-performance CAN bus communication interface card that integrates 2 standard CAN interfaces and 1 Ethernet interface. By using the GCAN-212-W high-performance CAN interface card, users can easily interconnect CAN bus networks and Ethernet networks, further expanding the scope of CAN bus networks.
The GCAN-212-W module from Guangcheng Technology has a protection level of IP65 and can adapt to industrial environments with high dust and mild humidity; The GCAN-212-W of Guangcheng Technology has integrated a CAN interface electrical isolation protection module, which prevents equipment damage caused by instantaneous overcurrent/overvoltage and enhances the reliability of the system in harsh environments.
Guangcheng Technology GCAN-212-W high-performance CAN interface card supports secondary development. Our company provides users with the GCAN-212-W connection routine code in VB environment. Users can develop their own GCAN-212-W testing software or integrate GCAN-212-W into existing software systems based on this routine. The routine code complies with Socket communication rules.
2. Equipment parameters
（1）Hardware Features
● High speed 32-bit industrial grade processor;
● Embedded hardware watchdog timer;
● The module has a built-in FLASH memory that can store parameters;
● Use an external power supply (9-30V DC) for power supply;
● Power supply current: 60mA (24V DC);
● Working temperature range: -40 ℃~+85 ℃;
● Electrostatic discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
● Electrical fast transient pulse group immunity level: ± 2KV;
● Surge immunity level: ± 1KV for power interface. ± 4KV for CAN bus interface;
● Protection level: IP65;
● Working humidity range:<95% RH without condensation;
（2）CAN Attributes
● Integrate 2 CAN bus interfaces, isolate the 2 CAN bus separately, and use terminal wiring method;
● The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
● CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS11898 specification;
● The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 1500V DC;
● 32 hardware FIFO receive buffers, maximum data transmission rate: 8000 frames per second; Maximum received data traffic: 14000 frames per second;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us.
（3）Ethernet Properties
● The Ethernet interface is in the form of a terminal, supporting 10/100M adaptive;
● Support heartbeat and timeout disconnect function;
● The work port, target IP, and target port can all be set;
● Automatically restore connection resources after network disconnection and reliably establish TCP connections;
● Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), the upper computer communication software is written in accordance with standard SOCKET rules.
3. Application Fields
● CAN bus network diagnosis and testing
● Industrial Ethernet connection to CAN network
● Electric power communication network
● Industrial control equipment
● High speed and large data communication
Welcome to inquire and learn more.
-
- （1）Hardware Features
● High speed 32-bit industrial grade processor;
● Embedded hardware watchdog timer;
● The module has a built-in FLASH memory that can store parameters;
● Use an external power supply (9-30V DC) for power supply;
● Power supply current: 60mA (24V DC);
● Working temperature range: -40 ℃~+85 ℃;
● Electrostatic discharge immunity level: Contact discharge ± 4KV, air discharge ± 8KV;
● Electrical fast transient pulse group immunity level: ± 2KV;
● Surge immunity level: ± 1KV for power interface. ± 4KV for CAN bus interface;
● Protection level: IP65;
● Working humidity range:<95% RH without condensation;
（2）CAN Attributes
● Integrate 2 CAN bus interfaces, isolate the 2 CAN bus separately, and use terminal wiring method;
● The CAN bus signal includes: CAN_S, CAN_L, CAN_SND;
● CAN bus supports CAN2.0A and CAN2.0B frame formats and complies with the ISO/DIS11898 specification;
● The CAN bus communication baud rate can be programmed between 5Kbps and 1Mbps;
● The CAN bus interface adopts electrical isolation, and the insulation voltage of the isolation module is 1500V DC;
● 32 hardware FIFO receive buffers, maximum data transmission rate: 8000 frames per second; Maximum received data traffic: 14000 frames per second;
● The timestamp accuracy of receiving messages on the CAN end can reach 1us.
（3）Ethernet Properties
● The Ethernet interface is in the form of a terminal, supporting 10/100M adaptive;
● Support heartbeat and timeout disconnect function;
● The work port, target IP, and target port can all be set;
● Automatically restore connection resources after network disconnection and reliably establish TCP connections;
● Compatible with SOCKET working modes (TCP Server, TCP Client, UDP, etc.), the upper computer communication software is written in accordance with standard SOCKET rules.
