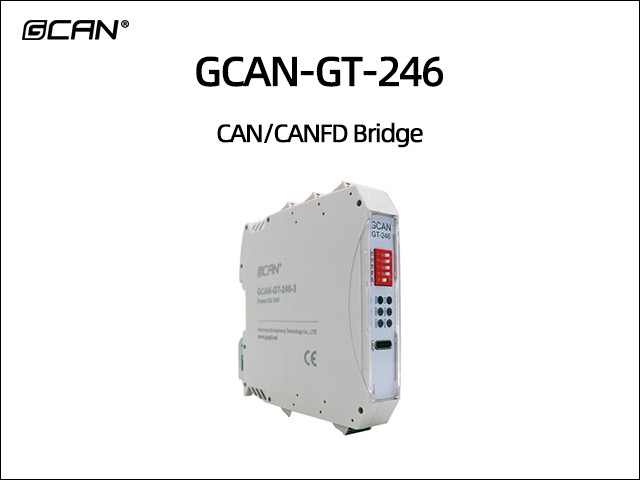

GCAN-GT-246 CAN/CANFD Bridge
- Brand:
- GCAN
- Model:
- GCAN-GT-246
- Application:
- CAN and CAN network device interconnection, power communication network, industrial control equipment
-
1.Function Overview
The GCAN-GT-246 series bridge from Guangcheng Technology is equipped with electrical isolation protection modules for both its CAN interface and power interface,which can effectively prevent damage to equipment caused by transient overcurrent and overvoltage,thereby enhancing the reliability of the system in harsh environments.
In terms of functional design,this series meets different networking requirements through model differentiation:
CAN-GT-246-2 integrates 2 CAN interfaces,which can be freely configured and converted through software.Both CAN1 and CAN2 support CAN/CAN FD protocol;
GCAN-GT-246-3 integrates 3 CAN interfaces,which can be freely configured and converted through software.CAN1,CAN2,and CAN3 all support CAN/CANFD protocol;
GCAN-GT-246-4 integrates 4 CAN interfaces,which can be freely configured and converted through software.CAN1,CAN2,and CAN3 all support CAN/CANFD protocol,while CAN4 only supports CAN protocol.The one-way conversion time is 2ms.

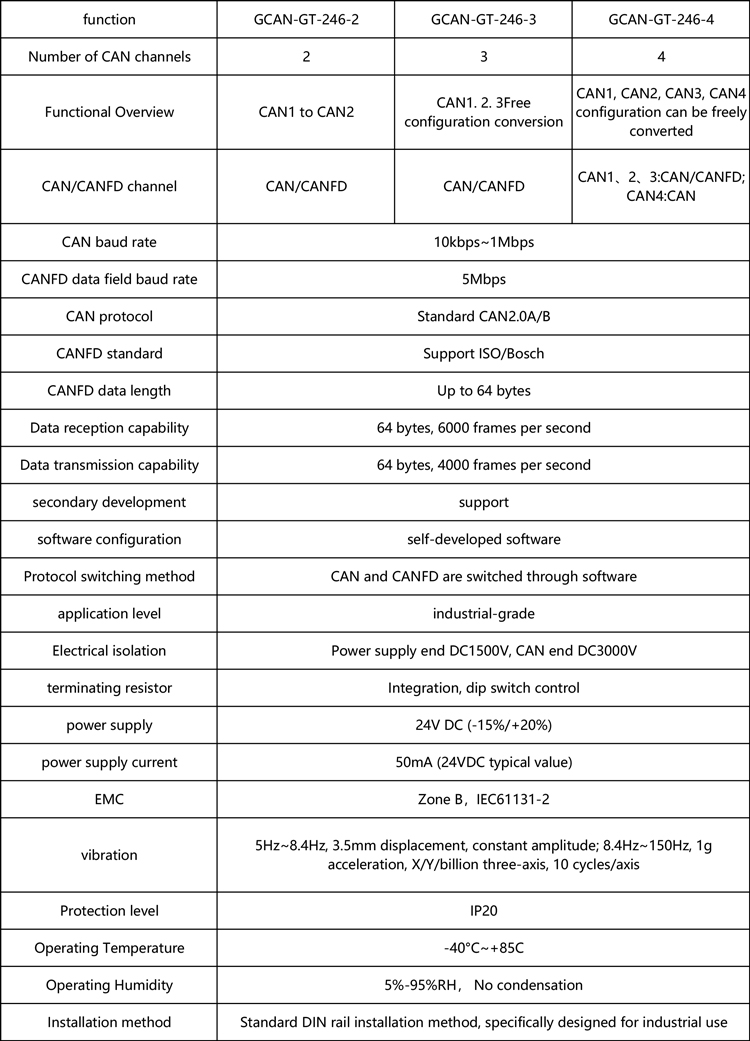

2.Product selection
3. Typical applications
(1) CAN and CAN network device interconnection
(2) Electric power communication network
(3) Industrial control equipment
