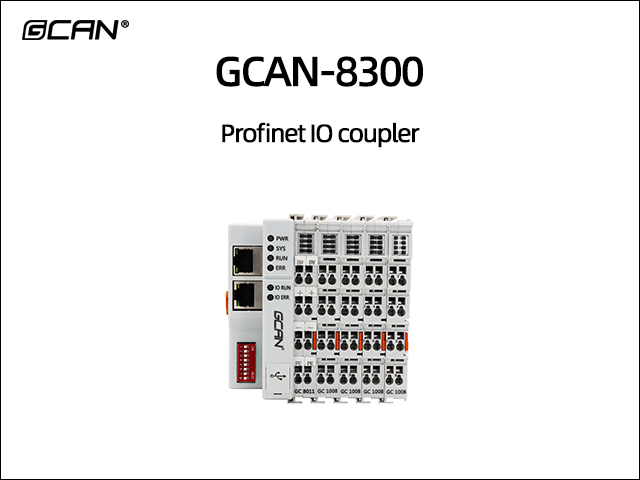

GCAN-8300 Profinet IO coupler
- Brand:
- GCAN
- Model:
- GCAN-8300
- Application:
- ● Connect with the distributed bus terminal module to form a complete control node; ● Perform data collection and transmit data using Profinet protocol.
-
1. Equipment Introduction
The GCAN-IO-8300 Profinet bus coupler is a high-performance bus universal remote IO module independently developed by our company based on the Profinet bus. It saves costs, simplifies wiring, and improves system reliability for users. These IO terminal modules can be expanded in a modular manner. A complete node consists of a bus coupler, 1-32 terminal modules of any number, and one terminal module.
By using the GCAN-IO-8300 Profinet bus coupler and GC bus expansion technology, I/O connections can be easily established, up to 32 input/output terminal modules can be connected. This series of IO is particularly suitable for centralized control with multiple on-site points and signal types.
The GCAN-IO-8300 Profinet bus coupler can be used as a Profinet slave for Siemens 200SMART, 1200, 1500, 300 and other series PLCs. The GCAN-IO-8300 bus coupler can connect all bus terminal modules. As far as users are concerned, the processing method of analog input/output signals is no different from that of other types of signals. The information within the controller process image area is displayed in byte array format. The GCAN-IO-8300 bus coupler supports automatic configuration, so you don't need to set parameters on your PC.
2. Equipment parameters
● Two Profinet bus interfaces (RJ45);
● Bus transmission rate: 100Mbps;
● Bus transmission distance (distance between stations): 100m;
● The maximum number of bus terminal modules is 32;
● The configuration mode is in the form of automatic configuration;
● The power supply adopts 24V DC (-15%/+20%);
● The current consumption is about 360mA;
● The maximum current for subsequent IO power supply is about 740mA;
● Electrical isolation is 1500 Vrms;
● Operating temperature range: -40 ℃~+85 ℃;
● Dimensions: Length 100mm * Width 69mm * Height 48mm.
3. Application Fields
● Connect with the distributed bus terminal module to form a complete control node;
● Perform data collection and transmit data using Profinet protocol.
Welcome to inquire and learn more.
-
- ● Two Profinet bus interfaces (RJ45);
● Bus transmission rate: 100Mbps;
● Bus transmission distance (distance between stations): 100m;
● The maximum number of bus terminal modules is 32;
● The configuration mode is in the form of automatic configuration;
● The power supply adopts 24V DC (-15%/+20%);
● The current consumption is about 360mA;
● The maximum current for subsequent IO power supply is about 740mA;
● Electrical isolation is 1500 Vrms;
● Operating temperature range: -40 ℃~+85 ℃;
● Dimensions: Length 100mm * Width 69mm * Height 48mm.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
