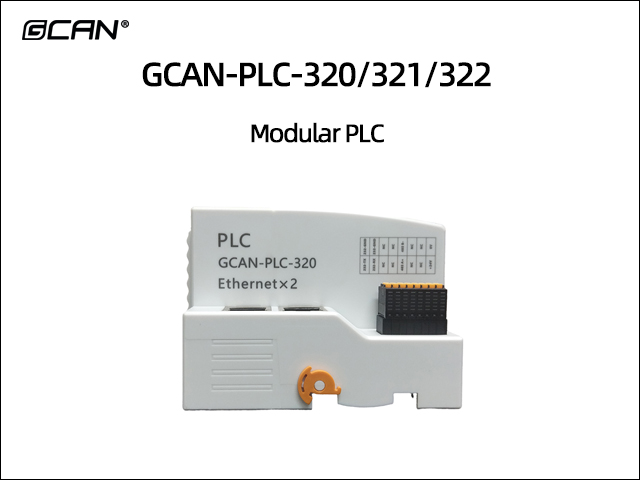

GCAN-PLC-320/321/322 Modular PLC
- Brand:
- GCAN
- Model:
- GCAN-PLC-320/321/322
- Application:
- ● Industrial Automation Control Core ● Analog closed-loop control system ● Switching open-loop control, logical operation ● Industrial CAN bus, ModBUS bus network communication
-
1. Equipment Introduction
GCAN-PLC-320/321/322 is a programmable logic controller (PLC) with integrated bus control function. It not only has the characteristics of simple appearance and high cost-effectiveness, but also can be easily connected to CAN bus systems and Modbus systems, and can be expanded through plug-in modules.
The GCAN-PLC-320/321/322 product consists of a programmable main control module (GCAN-PLC-320/321/322, etc.), several GC series IO modules (GC-1008, GC-3804, etc.), and a terminal resistor module (GC-0001). The GCAN-PLC-320/321/322 main control module can connect all GC series IO modules, and users can choose to expand IO modules according to their actual on-site needs,
The maximum number of IO modules can be expanded to 16, and the main control module can automatically allocate addresses based on the front and rear positions of the IO modules inserted, achieving automatic configuration. Users do not need to create a configuration interface or set parameters on the PC. GCAN-PLC-320/321/322 can be programmed using OpenPCS software or Codesys V3.5 SP16 and above software. The software supports five standard programming languages specified in the IEC-61131-3 standard, which makes the program highly portable and reusable. Additionally, the software has multiple debugging functions (breakpoints, single steps, etc.), making debugging programs more convenient.
GCAN-PLC-320/321/322 not only can complete various digital/analog input/output, but also integrates multiple commonly used industrial field buses, such as CAN bus (supported by GCAN-PLC-321/22), RS485 bus, RS232 bus, Ethernet bus, and supports common communication protocols such as CANopen (supported by GCAN-PLC-321/22), Modbus RTU, Modbus TCP, etc.
The GC series IO modules include switch input and output modules, analog input and output modules, pulse input and output modules, etc.
2. Equipment parameters
● Programming software: OpenPCS/Codesys (programming language compliant with IEC61131-3 standard);
● Supports CANopen protocol master/slave functionality (GCAN-PLC-321/22 support);
● Support Modbus RTU master/slave station function;
● The maximum number of expandable IO modules is 16;
● By default, send 4 PDOs (CANopen) and receive 4 PDOs (CANopen) (supported by GCAN-PLC-321/22);
● The configuration mode is in the form of automatic configuration;
● The power supply adopts DC+24V; The maximum input current is 1A;
● Communication isolation is 1500V DC;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN1 channel.
3. Application Fields
● Industrial Automation Control Core
● Analog closed-loop control system
● Switching open-loop control, logical operation
● Industrial CAN bus, ModBUS bus network communication
Welcome to inquire and learn more.
-
- ● Programming software: OpenPCS/Codesys (programming language compliant with IEC61131-3 standard);
● Supports CANopen protocol master/slave functionality (GCAN-PLC-321/22 support);
● Support Modbus RTU master/slave station function;
● The maximum number of expandable IO modules is 16;
● By default, send 4 PDOs (CANopen) and receive 4 PDOs (CANopen) (supported by GCAN-PLC-321/22);
● The configuration mode is in the form of automatic configuration;
● The power supply adopts DC+24V; The maximum input current is 1A;
● Communication isolation is 1500V DC;
● Working temperature range: -40 ℃~+85 ℃;
● Protection level: IP20;
● EMC anti-interference level: Zone B;
● EMC anti-interference support: power supply channel, RS485 channel, CAN1 channel.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
