GCAN-419 Programmable gateway
- Brand:
- GCAN
- Model:
- GCAN-419
- Application:
- ● Mutual conversion between industrial Ethernet and CAN bus data ● Interconnection between industrial Ethernet devices and CAN network devices ● Power communication network ● Industrial control equipment ● High-speed, high-volume data communication
-
1. Equipment Introduction
Shenyang Guangcheng Technology's GCAN-419 is a programmable bus gateway/converter. This device integrates 3 CAN bus interfaces, 1 Ethernet bus interface, 2 RS485 bus interfaces, and 1 RS232 bus interface. Before practical use, users need to write applications for this device through the OpenPCS software to achieve data conversion between different bus interfaces. The GCAN-419 module supports multiple standard communication protocols, such as CANopen, SAE J1939, Modbus TCP, Modbus RTU, etc. Users can directly select the corresponding protocol function blocks for loading and use in practical applications. The addition of function blocks simplifies user programming work, requiring users to only understand basic PLC programming instructions and the characteristics and parameters of the corresponding bus and protocol to complete the programming task. The GCAN-419 module supports 16 digital DI inputs and 16 relay outputs.
GCAN-419 can be programmed using OpenPCS software, which supports five standard PLC programming languages specified in the IEC-61131-3 standard, such as SFC (Sequential Function Chart), LD (Ladder Diagram), FBD (Function Block Diagram), ST (Structured Text), and IL (Instruction List). This makes the program highly portable and reusable. Moreover, the software also has various debugging functions (such as power-off, single-step, monitoring, etc.), making debugging the program more convenient.

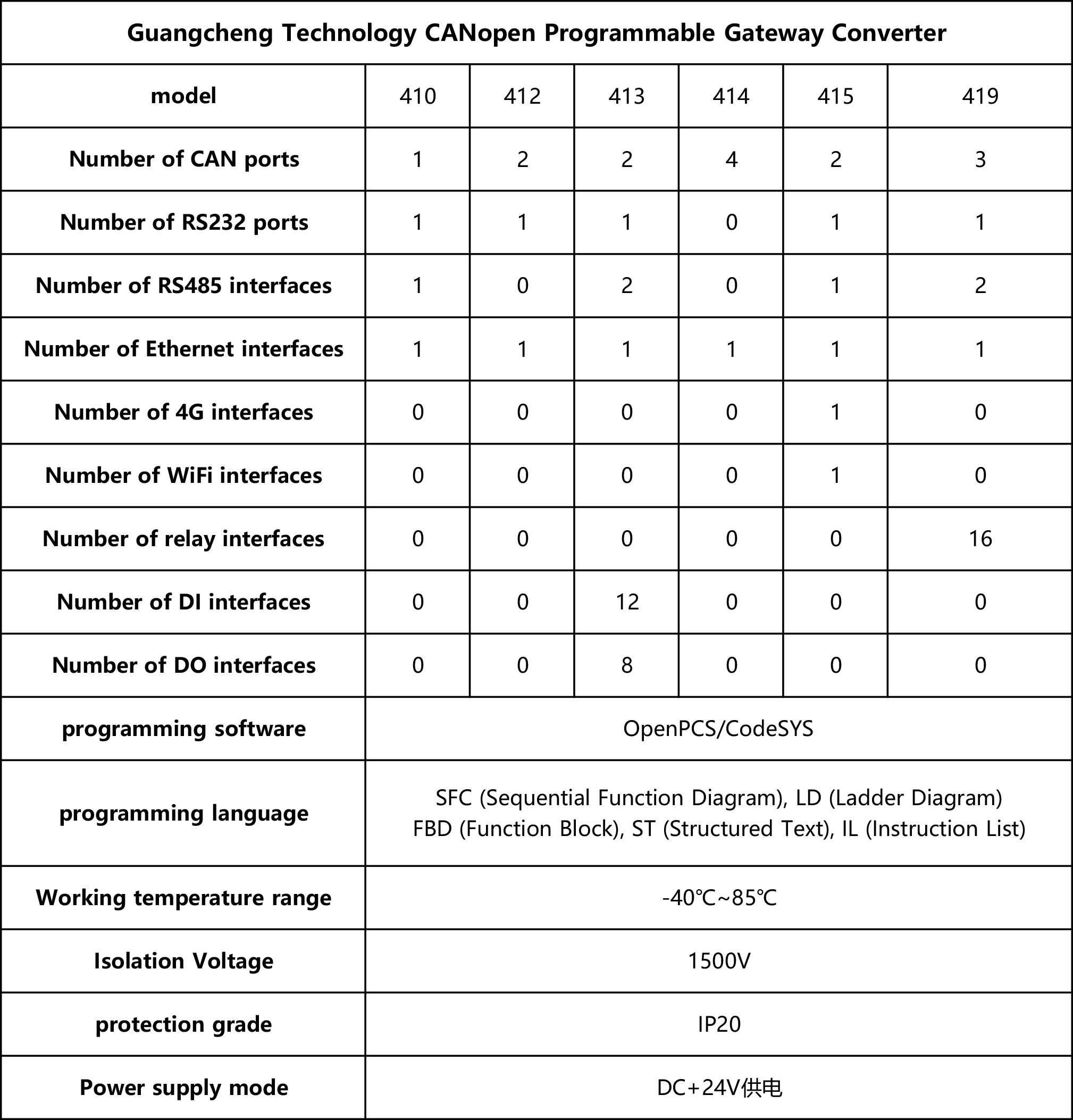

2. Equipment Parameters
● High-speed 32-bit industrial-grade processor;
● Embedded hardware watchdog timer;
● Supply power using an external power source (DC+24V, 100mA);
● Electrostatic discharge immunity level: Contact discharge ±2KV, air discharge ±8KV;
● Electrical fast transient/burst immunity level: ±1KV;
● Surge immunity level: ±1KV;
● Operating humidity range: 5% to 95% RH, no condensation;
● 3-channel CAN bus interface, 1-channel Ethernet interface, 1-channel RS232 serial interface, and 2-channel RS485 serial interfaces;
● Programming software: OpenPCS (compliant with IEC 61131-3 standard);
● Support CANopen protocol master/slave functionality;
● Supports Modbus TCP master/slave functionality;
● Standard DIN rail installation method, specifically designed for industrial applications.
● Electrical isolation is 1500 Vrms;
● Operating temperature range: -40℃~+85℃;
● Protection level: IP20.
3. Application Fields
● Mutual conversion between industrial Ethernet and CAN bus data
● Interconnection between industrial Ethernet devices and CAN network devices
● Power communication network
● Industrial control equipment
● High-speed, high-volume data communication
Welcome to inquire and learn more.
-
- ● High-speed 32-bit industrial-grade processor;
● Embedded hardware watchdog timer;
● Supply power using an external power source (DC+24V, 100mA);
● Electrostatic discharge immunity level: Contact discharge ±2KV, air discharge ±8KV;
● Electrical fast transient/burst immunity level: ±1KV;
● Surge immunity level: ±1KV;
● Operating humidity range: 5% to 95% RH, no condensation;
● 3-channel CAN bus interface, 1-channel Ethernet interface, 1-channel RS232 serial interface, and 2-channel RS485 serial interfaces;
● Programming software: OpenPCS (compliant with IEC 61131-3 standard);
● Support CANopen protocol master/slave functionality;
● Supports Modbus TCP master/slave functionality;
● Standard DIN rail installation method, specifically designed for industrial applications.
● Electrical isolation is 1500 Vrms;
● Operating temperature range: -40℃~+85℃;
● Protection level: IP20.
- Packing
Standard package:Carton
Delivery Time
2~5 days after receipt of your payment by air express
After-sale service
GCAN provide one year free after-sales warranty,lifetime free software and technical support.
