GCAN-413 Programmable gateway
- Brand:
- GCAN
- Model:
- GCAN-413
- Application:
- GCAN-GT-413 is a programmable bus gateway/converter with IO. This device integrates 2 CAN bus interfaces, 1 Ethernet bus interface, 2 RS485 bus interfaces, and 1 RS232 bus interface. Before actual use, users need to write an application program for the device through OpenPCS software to achieve data conversion between different bus interfaces.
-
1、Function Overview
Shenyang Guangcheng Technology GCAN-413 is a programmable bus gateway/converter with IO.This device integrates 2 CAN bus interfaces,1 Ethernet bus interface,2 RS485 bus interfaces,and 1 RS232 bus interface.Before actual use,users need to write an application program for the device through OpenPCS software to achieve data conversion between different bus interfaces.The GCAN-413 module supports multiple standard communication protocols,such as CANopen,SAE J1939,Modbus TCP,Modbus RTU,etc.Users can directly select the corresponding protocol function block to load and use in actual use.The addition of function blocks makes user programming work simple.Users only need to understand the basic PLC programming instructions and the characteristics and parameters of the corresponding bus protocol to complete programming work.
The GCAN-413 module supports 12 digital DI inputs and 8 digital DO outputs.GCAN-413 can be programmed using OpenPCS software,which supports five standard PLC programming languages that comply with the IEC-61131-3 standard,such as SFC(Sequential Function Diagram),LD(Ladder Diagram),FBD(Function Block),ST(Structured Text),IL(Instruction List).This makes the program highly portable and reusable,and the software also has multiple debugging functions(such as power-off,single step,monitoring,etc.),making debugging the program more convenient.

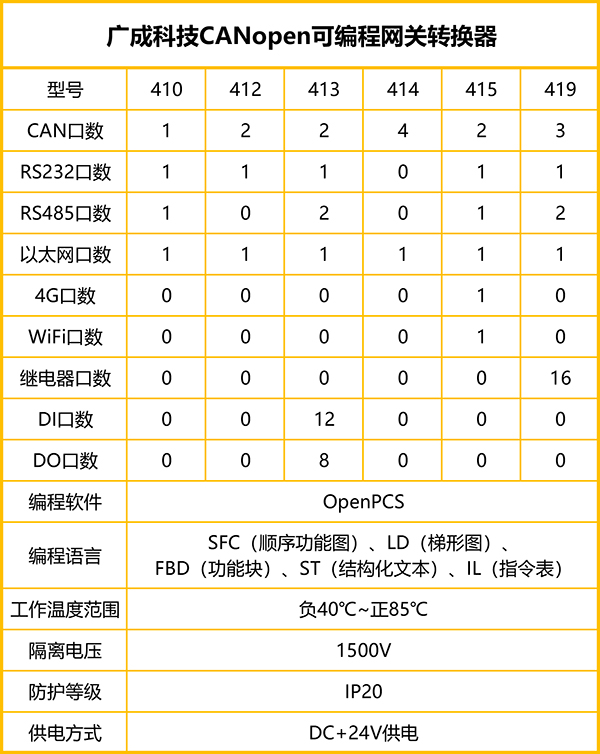

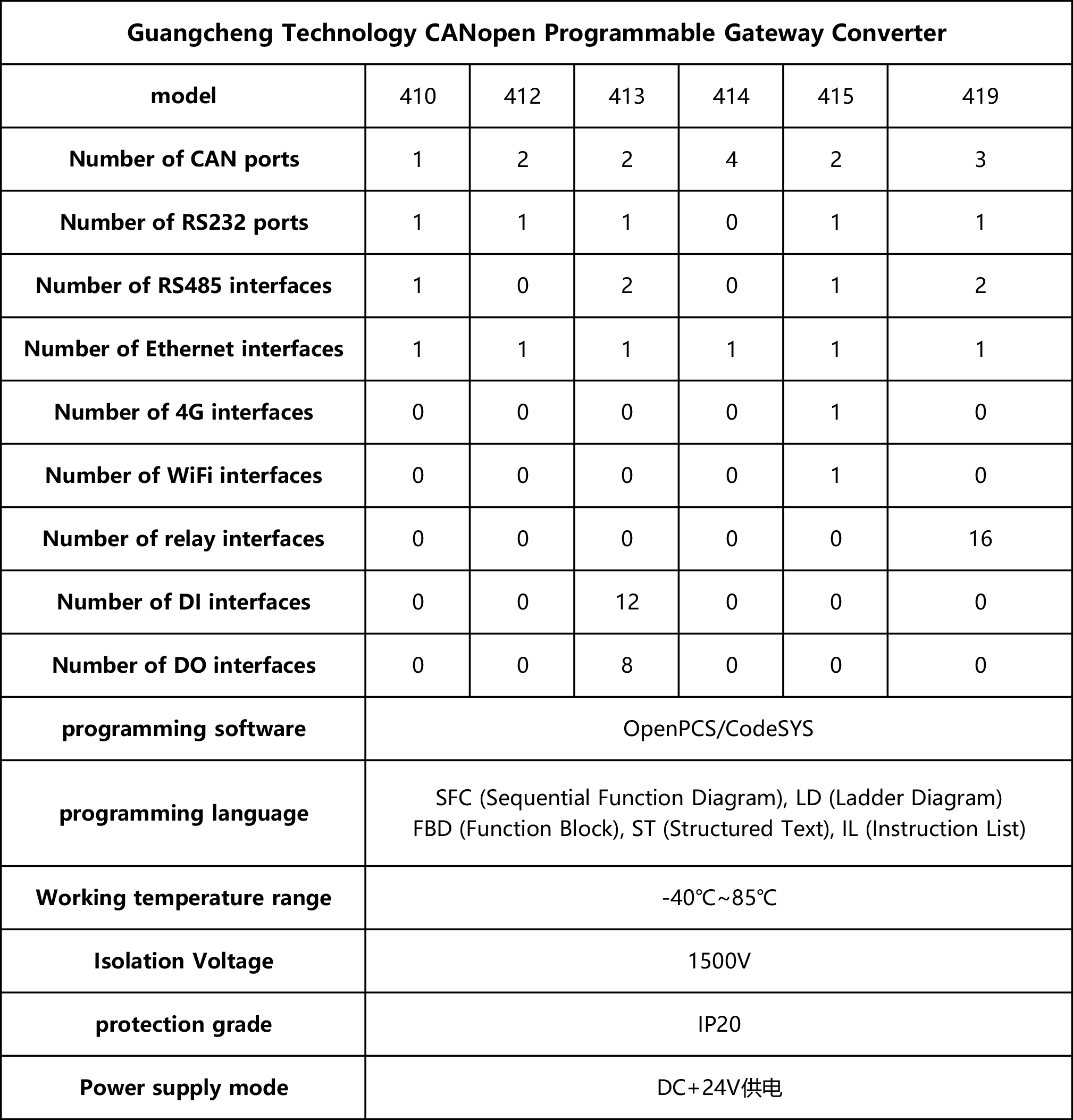

2、Equipment parameters
The equipment parameters of Shenyang Guangcheng Technology GCAN-413 programmable gateway converter include:
(1)High speed 32-bit industrial grade processor;(2)Embedded hardware watchdog timer;(3)Use an external power supply(DC+24V,100mA)for power supply;(4)Electrostatic discharge immunity level:Contact discharge±2KV,air discharge±8KV;(5)Electrical fast transient burst immunity level:±1KV;(6)Surge immunity level:±1KV;(7)Working humidity range:5%~95%RH without condensation;(8)2 CAN bus interfaces,1 Ethernet interface,1 RS232 serial interface,2 RS485 serial interfaces;(9)Programming software:OpenPCS(compliant with IEC 61131-3 standard);(10)Support CANopen protocol master/slave station function;(11)Supports Modbus RTU/TCP master/slave functionality;(12)Standard DIN rail installation method,specifically designed for industrial use.(13)Electrical isolation is 1500 Vrms;(14)Working temperature range:-40℃~+85℃;(15)Protection level:IP20.
3、Application Fields
The application areas of Shenyang Guangcheng Technology GCAN-413 programmable gateway converter include:
(1)Inter conversion of industrial Ethernet and CAN bus data(2)Interconnection between industrial Ethernet devices and CAN network devices(3)Electric power communication network(4)Industrial control equipment(5)High speed and large data communication

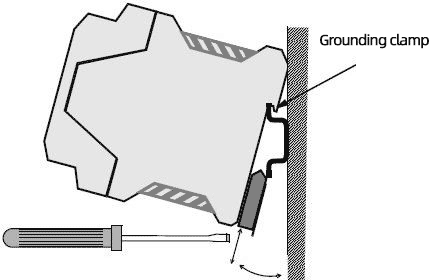

4、Equipment installation
1.Module size

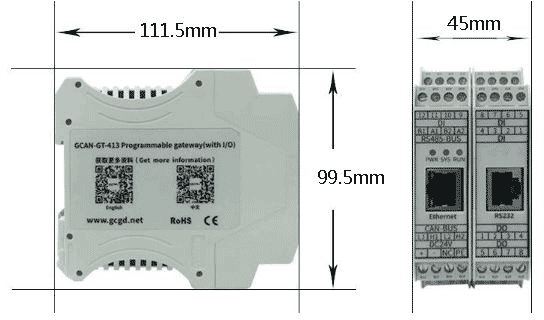

Equipment dimensions:(length,including wiring terminals)111.5mm*(width)45mm*(height)99.5mm,as shown in the schematic diagram
GCAN-GT-413 module dimension diagram
