（72）：GCAN-PLC-400
Many non-standard automation projects often encounter these pain points: uncertain IO points in the early stages of the project, and the need to replace the entire set of controllers for later modifications to increase or decrease points; To interface with CANopen servo, Modbus instrument, and Ethernet touch screen simultaneously, an additional gateway is required for a regular PLC; Imported controllers have high costs and poor communication stability under harsh operating conditions with wide temperature ranges.

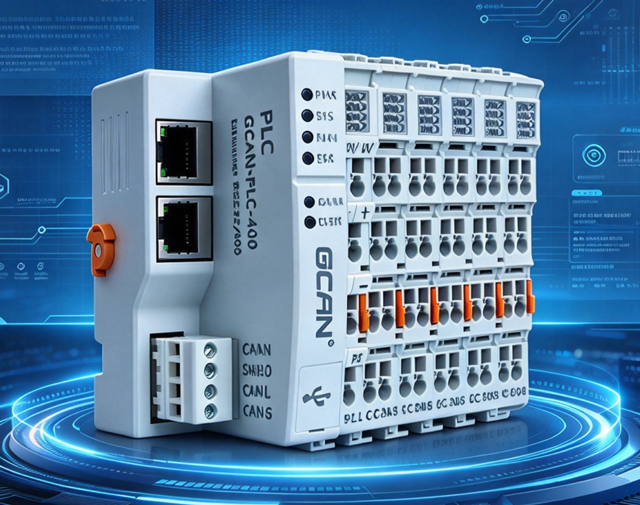

The Shenyang Guangcheng GCAN-PLC-400 body has no IO and can expand up to 32 GC series plug-in IO modules. The modules are automatically assigned addresses and do not require manual configuration; Integrated Ethernet, CAN, RS232/485 multiplexing interfaces, supporting CANopen, Modbus RTU/TCP master-slave stations; Compatible with Codesys and OpenPCS, following five programming languages of IEC-61131-3; 1500VDC electrical isolation, wide temperature range of -40 ℃~+85 ℃, DIN rail self-locking installation, can be matched with various IO modules such as digital, analog, thermistor, and thermocouple.
Real implementation case: Non standard testing fixture project, CAN bus docking with multiple CANopen servos, 485 access to various testing instruments, adding or removing plug-in IO as needed, no need to replace the main control, eliminating gateway equipment, simplifying cabinet wiring, and shortening debugging cycle.
Suitable for non-standard tooling, testing equipment, and CAN bus automation scenarios, with flexible IO expansion requirements. Welcome to the official website of Shenyang Guangcheng Technology www.gcgd.net for inquiries and routine and technical information.
The Shenyang Guangcheng GCAN-PLC-400 body has no IO and can expand up to 32 GC series plug-in IO modules. The modules are automatically assigned addresses and do not require manual configuration; Integrated Ethernet, CAN, RS232/485 multiplexing interfaces, supporting CANopen, Modbus RTU/TCP master-slave stations; Compatible with Codesys and OpenPCS, following five programming languages of IEC-61131-3; 1500VDC electrical isolation, wide temperature range of -40 ℃~+85 ℃, DIN rail self-locking installation, can be matched with various IO modules such as digital, analog, thermistor, and thermocouple.
Real implementation case: Non standard testing fixture project, CAN bus docking with multiple CANopen servos, 485 access to various testing instruments, adding or removing plug-in IO as needed, no need to replace the main control, eliminating gateway equipment, simplifying cabinet wiring, and shortening debugging cycle.
Suitable for non-standard tooling, testing equipment, and CAN bus automation scenarios, with flexible IO expansion requirements. Welcome to the official website of Shenyang Guangcheng Technology www.gcgd.net for inquiries and routine and technical information.
