（40）：GCAN-6057
There are common pain points in the collection of construction machinery and open-pit mining equipment, such as scattered excavation arm and chassis points, long-term vibration and skin breakage of IO long wire bundles in traditional control cabinets, and susceptibility to short circuits due to sediment erosion; Ordinary modules are not waterproof and dustproof, and frequently malfunction in rainy, snowy, and oily environments; Lack of high-speed counting and PWM pulse function, unable to match the speed measurement requirements of hydraulic proportional valves; The strong electromagnetic interference caused by the motor frequency converter leads to signal loss, resulting in a long procurement cycle and high cost for imported M12 IO.
Shenyang Guangcheng GCAN-6057 perfectly solves problems, with IP67 overall protection and M12 aviation plug for direct insertion of sensors; 8DI (4-channel 100KHz high-speed counting)+8DO (2KHz PWM output), CAN port 1500V isolated anti-interference; -Wide temperature range of 40 ℃~+85 ℃, output short circuit automatic cut-off protection, standard CANopen protocol, single channel maximum 1A driving load.
Real and replicable case: A medium-sized excavator underwent a complete machine renovation, with one GCAN-6057 installed on each bucket and chassis to collect limit and speed signals nearby. The bus was connected in series to the driver's cab control, eliminating the need for a hundred meter long wiring harness. Communication under outdoor rain, snow, and continuous vibration conditions was stable, and high-speed counting accurately collected hydraulic speed. PWM precise control of proportional valves significantly reduced the overall failure rate.
Suitable for harsh scenarios such as construction machinery, mining, outdoor assembly lines, etc. If you have waterproof distributed IO requirements, please call 13019325660 for specific consultation.
Shenyang Guangcheng GCAN-6057 perfectly solves problems, with IP67 overall protection and M12 aviation plug for direct insertion of sensors; 8DI (4-channel 100KHz high-speed counting)+8DO (2KHz PWM output), CAN port 1500V isolated anti-interference; -Wide temperature range of 40 ℃~+85 ℃, output short circuit automatic cut-off protection, standard CANopen protocol, single channel maximum 1A driving load.
Real and replicable case: A medium-sized excavator underwent a complete machine renovation, with one GCAN-6057 installed on each bucket and chassis to collect limit and speed signals nearby. The bus was connected in series to the driver's cab control, eliminating the need for a hundred meter long wiring harness. Communication under outdoor rain, snow, and continuous vibration conditions was stable, and high-speed counting accurately collected hydraulic speed. PWM precise control of proportional valves significantly reduced the overall failure rate.
Suitable for harsh scenarios such as construction machinery, mining, outdoor assembly lines, etc. If you have waterproof distributed IO requirements, please call 13019325660 for specific consultation.
Last：（39）：GCAN-5032

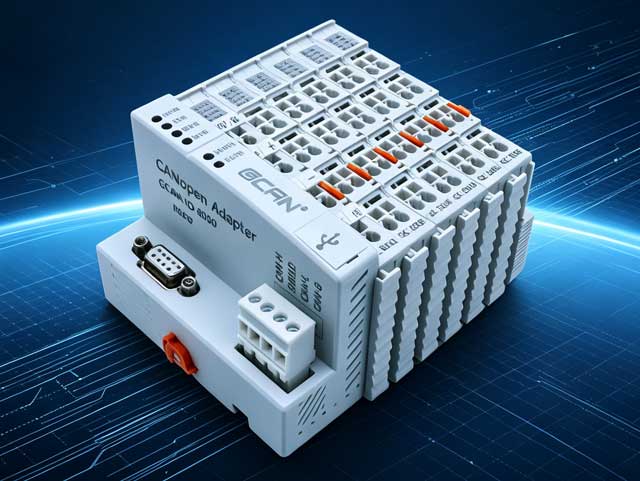

Next：（41）：GCAN-IO-8000
