（5）USBCAN ME

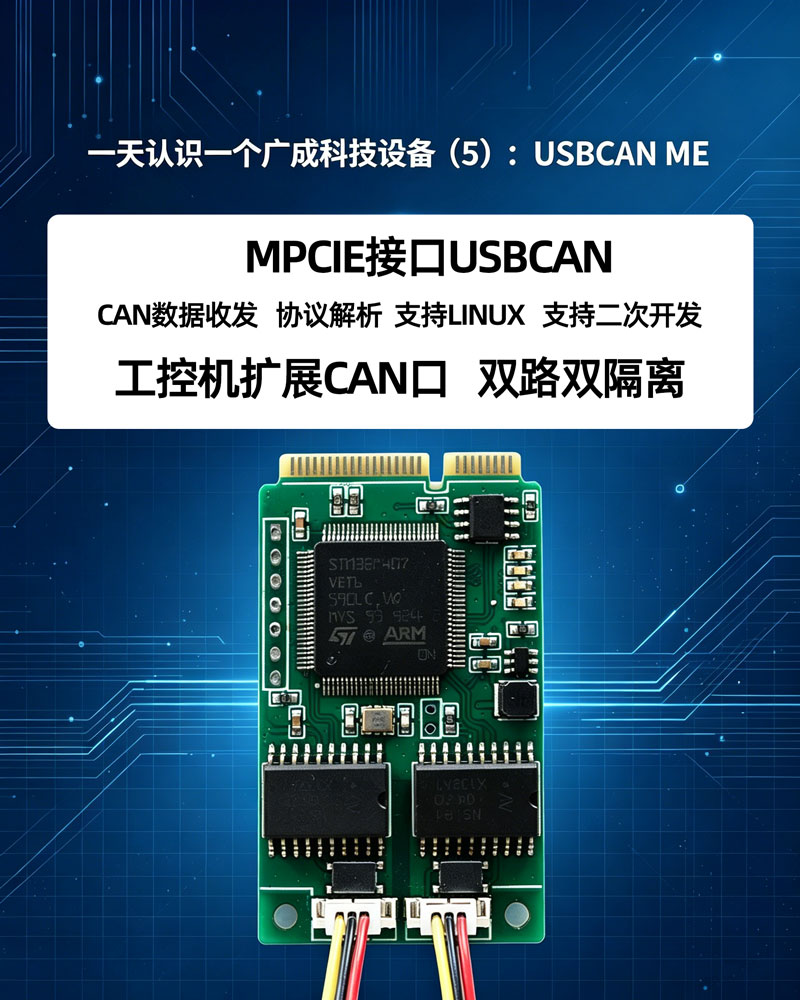

Shenyang Guangcheng USBCAN-ME has two built-in isolated CAN channels, 3000V DC electrical isolation, and is suitable for harsh industrial environments with a wide temperature range of -40 ℃~+85 ℃. It can be directly plugged into the PCIE slot of an industrial computer and has a small size of only 51 × 30mm, occupying no space.
Support CAN2.0A/B full protocol, adjustable baud rate from 5K to 1Mbps, standard with GCANTools upper software, automatic baud rate recognition, message sending and receiving, filtering and parsing, OBD vehicle diagnosis, CANopen main station, DBC parsing, curve visualization functions fully covered, dual channel data merging, cross channel relay, offline forwarding one-stop solution.
Compatible with all versions of Windows and Linux systems, equipped with a complete set of secondary development routines such as C #/Python/LabVIEW, capable of high-speed transmission and reception of up to 8000 frames per second per single channel, and supporting simultaneous operation of 8 devices. The hardware does not have a built-in 120 Ω terminal resistor and can be externally connected as needed. The 3-pin terminal wiring is simple, and it is suitable for power, automotive electronics, industrial control, and bus diagnosis scenarios. The software and hardware after-sales technical support is provided throughout the entire process, and the development and debugging efficiency is directly maximized!
If you need any equipment, please feel free to add 13019325660 for consultation and understanding.
Support CAN2.0A/B full protocol, adjustable baud rate from 5K to 1Mbps, standard with GCANTools upper software, automatic baud rate recognition, message sending and receiving, filtering and parsing, OBD vehicle diagnosis, CANopen main station, DBC parsing, curve visualization functions fully covered, dual channel data merging, cross channel relay, offline forwarding one-stop solution.
Compatible with all versions of Windows and Linux systems, equipped with a complete set of secondary development routines such as C #/Python/LabVIEW, capable of high-speed transmission and reception of up to 8000 frames per second per single channel, and supporting simultaneous operation of 8 devices. The hardware does not have a built-in 120 Ω terminal resistor and can be externally connected as needed. The 3-pin terminal wiring is simple, and it is suitable for power, automotive electronics, industrial control, and bus diagnosis scenarios. The software and hardware after-sales technical support is provided throughout the entire process, and the development and debugging efficiency is directly maximized!
If you need any equipment, please feel free to add 13019325660 for consultation and understanding.
